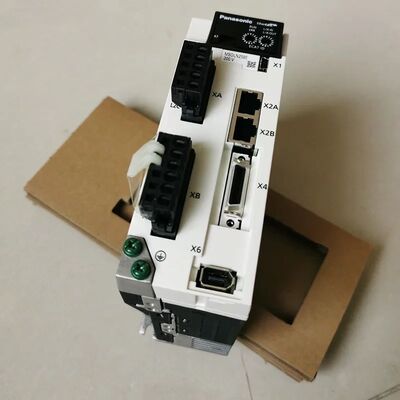

MBDLN25SE Panasonic 400W AC Servo Driver

Large Image : MBDLN25SE Panasonic 400W AC Servo Driver

Product Details:

Place of Origin:	Japan
Brand Name:	Panasonic
Model Number:	MBDLN25SE

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

MBDLN25SE Panasonic 400W AC Servo Driver

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries
Certificate:	CE ISO TUV
Highlight:	Panasonic 400W servo driver , AC servo motor driver , 400W servo driver with warranty

MBDLN25SE Panasonic 400W AC Servo Driver

Product Overview

Part Number	MBDLN25SE
Product	Servo Driver
Series	A6SE Series
Control Type	Position Control (Incremental System, Pulse Train Only)
Safety Function	Without Safety Function
Product Family	MINAS A6S Series

Key Features

Swifter, smarter and easier to use
Powered Up compact driver design
High-performance position control

Technical Specifications

Frame Size	B-Frame
Frequency Response	3.2 kHz
Control Method	Position Control
Supply Voltage	Single/3-phase 200 V
Interface Type	Pulse Train Only
Dimensions (W×H×D)	55 × 150 × 130 mm
Mass	1.0 kg

Control System Details

Input Power: Main Circuit	Single/3-phase 200 V (+10% -15%) to 240 V (+10% -15%) 50/60 Hz
Input Power: Control Circuit	Single phase 200 V (+10% -15%) to 240 V (+10% -15%) 50/60 Hz
Encoder Feedback	23-bit (8,388,608 resolution) absolute encoder, 7-wire serial
Control Signal Input	General purpose 10 inputs
Control Signal Output	General purpose 6 outputs
Analog Signal Output	2 outputs (Analog monitor)
Pulse Signal Input	2 inputs (Photo-coupler input, Line receiver input)
Pulse Signal Output	4 outputs (Line driver: 3 output, open collector: 1 output)
Communication Function	USB interface for parameter setting and status monitoring
Regeneration	No built-in regenerative resistor (external resistor only)
Control Modes	Switching among: (1) Position control, (2) Internal velocity command, (3) Position/Internal velocity command

Important Note: A6SE series driver (Position control only) does not support the absolute system using serial communication with the host device. It supports incremental system only. Since it can be used only as an incremental system, do not connect the battery for absolute encoder. Parameter Pr. 0.15 must be set to "1" (factory settings).

Dimensions & Connectors

Specifications and design of the products are subject to change without notice for product improvement.

Dimensions Diagram [Unit: mm]

The dimension is for the A6SF Series, but outer dimension is the same as the A6SE and A6SG Series. Please refer to the catalog for detailed dimensions.

Connector Specifications

The dimension is for the A6SF Series, but outer dimension is the same as the A6SE and A6SG Series. Please refer to the catalog for detailed specifications.
