MCDLN35NE Panasonic AC Servo Motor Driver 750W Single / 3 Phase 200V

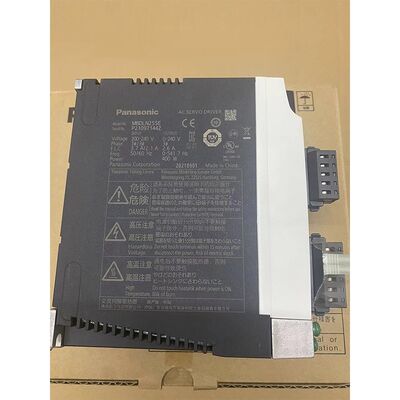

Large Image : MCDLN35NE Panasonic AC Servo Motor Driver 750W Single / 3 Phase 200V

Product Details:

Place of Origin:	CHINA
Brand Name:	Panasonic
Model Number:	MCDLN35NE

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/months

Contact Now Chat Now

MCDLN35NE Panasonic AC Servo Motor Driver 750W Single / 3 Phase 200V

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries
Certificate:	CE ISO TUV
Highlight:	Panasonic AC Servo Motor Driver 200V , Panasonic AC Servo Motor Driver 750W , MCDLN35NE

Panasonic MCDLN35NE AC Servo Motor Driver

750W Single/3 Phase 200V Servo Driver with RTEX Network Technology

Product Overview

Part Number	MCDLN35NE
Product Family	MINAS A6N Series Servo Driver
Series	A6NE series
Network Type	RTEX Ultra high-speed Network (Basic type)
Safety Function	Without safety function

Key Features

Realtime Express (RTEX) advanced network technology
High-precision real-time performance for servo control
Multiple control modes: Position, Velocity, and Torque control
3.2 kHz frequency response
23-bit absolute encoder with 8,388,608 resolution
Built-in regenerative resistor
USB interface for parameter setting and monitoring

Technical Specifications

Frame	C-Frame
Supply Voltage	Single/3-phase 200 V (+10% -15%) to 240 V (+10% -15%) 50/60 Hz
Control Circuit Power	Single phase 200 V (+10% -15%) to 240 V (+10% -15%) 50/60 Hz
Dimensions (W×H×D)	65 × 150 × 170 mm
Mass	1.6 kg
Control Method	Semi-closed control

Control & I/O Specifications

Control Modes

Position control: Profile position control [PP], Cyclic position control [CP]
Velocity control: Cyclic velocity control [CV]
Torque control: Cyclic torque control [CT]

Parallel I/O Connector

Control signal Input: 8 inputs (assignable by parameter)
Control signal Output: 3 outputs (assignable by parameter)
Analog signal Output: 2 outputs (Analog monitor)
Pulse signal Output: Line driver output for encoder pulses (A/B phase signal)

Communication Interfaces

RTEX: Real-time operation commands, parameter setting, status monitoring
USB: Connection to computers for parameter setting and status monitoring

Encoder Configuration Note: When using as an incremental system (not using multi-turn data), do not connect the battery for absolute encoder. Parameter Pr. 0.15 must be set to "1" (factory settings).

Important: Specifications and design of the products are subject to change without notice for product improvement. For detailed dimensions and connector specifications, please refer to the product catalog.
