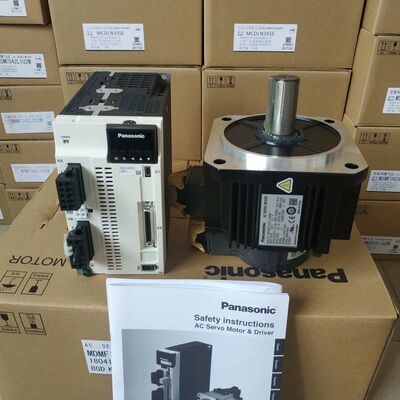

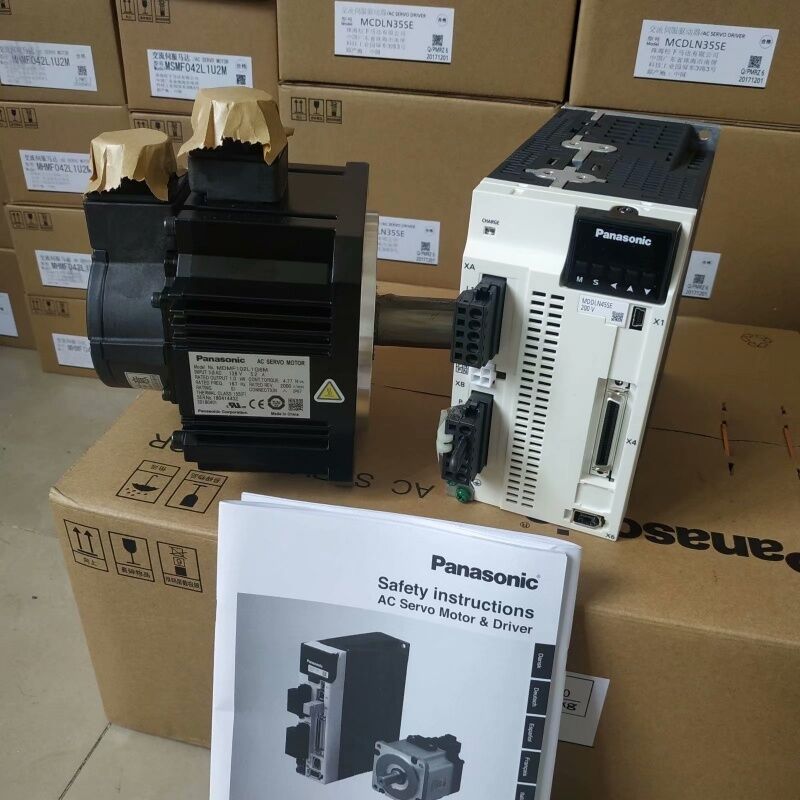

1.5KW Panasonic AC Servo Motor Driver MDMF152L1G6M+MDDLN55SE

1.5KW Panasonic AC Servo Motor Driver MDMF152L1G6M+MDDLN55SE
1.5KW Panasonic AC Servo Motor Driver MDMF152L1G6M+MDDLN55SE 1.5KW Panasonic AC Servo Motor Driver MDMF152L1G6M+MDDLN55SE

Large Image :  1.5KW Panasonic AC Servo Motor Driver MDMF152L1G6M+MDDLN55SE

Product Details:
Place of Origin: Japan
Brand Name: Panasonic
Model Number: MDMF152L1G6M+MDDLN55SE
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: original package
Delivery Time: 3 working days
Payment Terms: T/T,Western Union
Supply Ability: 500pcs/month
Contact Now Chat Now

1.5KW Panasonic AC Servo Motor Driver MDMF152L1G6M+MDDLN55SE

Description
Condition: Original Brand New Warranty: One Year
Shipping Way: DHL FedEx Express Application: Automation Industries, Oil, Gas, Chemical Industries
Certificate: CE ISO TUV
Highlight:

1.5KW Panasonic AC Servo Motor Driver

,

MDMF152L1G6M

,

MDDLN55SE

1.5KW Panasonic AC Servo Motor Driver MDMF152L1G6M+MDDLN55SE
Product Overview

The Panasonic MINAS A6 Family Servo Motor MDMF152L1G6M is a high-performance 1.5KW AC servo motor with middle inertia design and connector-type configuration, designed for precision industrial applications.

Key Features
  • Power range: 50W to 22KW
  • Input power supply: DC 24V/48V or AC 100V/200V/400V
  • 23-bit Absolute/Incremental encoder (battery-less option available)
  • High frequency response: 3.2 kHz
  • IP67 protection rating
  • Middle inertia design for optimal performance
Technical Specifications
Part Number MDMF152L1G6M
Family Name MINAS A6
Series MDMF Series
Type Middle inertia
Protection Class IP67
Flange Size 130 mm sq.
Motor Lead-out Connector type
Rated Output 1500 W
Rated Torque 7.16 N⋅m
Continuous Stall Torque 7.52 N⋅m
Max. Peak Torque 21.5 N⋅m
Rated Speed 2000 r/min
Max. Speed 3000 r/min
Mass 5.7 kg
Shaft Type Key-way
Oil Seal Included
Holding Brake Without
Encoder Specifications
Type 23-bit Absolute/Incremental system
Resolution 8,388,608
When using as an incremental system (not using multi-turn data), do not connect a battery for absolute encoder.
Permissible Load
During Assembly - Radial Load (P-direction) 980 N
During Assembly - Thrust Load (A-direction) 588 N
During Assembly - Thrust Load (B-direction) 686 N
During Operation - Radial Load (P-direction) 490 N
During Operation - Thrust Load (A,B-direction) 196 N
Compatible Drivers
Part Number Series Type Interface Frame Supply Voltage
MDDLN55NE A6NE series RTEX, Ultra high-speed Network (Basic type) RTEX D-Frame Single/3-phase 200V
MDDLN55SE A6SE series Position control type Pulse train only D-Frame Single/3-phase 200V
MDDLN55SG A6SG series RS485/RS232 Communication type Pulse, Modbus (RS485/RS232) D-Frame Single/3-phase 200V
MDDLT55NF A6NF series RTEX, Ultra high-speed Network type (Multi type) RTEX D-Frame Single/3-phase 200V
MDDLT55SF A6SF series Multifunction type Analog/Pulse, Modbus (RS485/RS232) D-Frame Single/3-phase 200V
Specifications and design of the products are subject to change without notice for product improvement.
