MHMF402L1G6M Panasonic 4KW AC Servo Motor

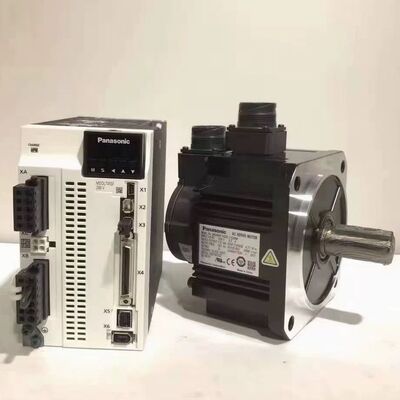

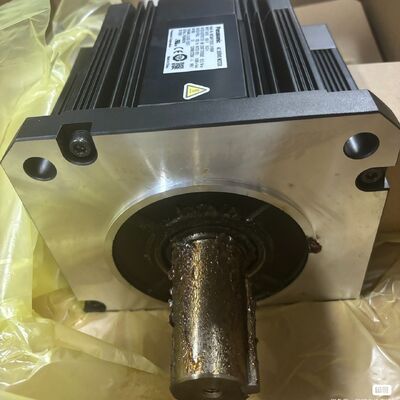

Large Image : MHMF402L1G6M Panasonic 4KW AC Servo Motor

Product Details:

Place of Origin:	Japan
Brand Name:	Panasonic
Model Number:	MHMF402L1G6M

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	100pcs/month

Contact Now Chat Now

MHMF402L1G6M Panasonic 4KW AC Servo Motor

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries
Certificate:	CE ISO TUV
Highlight:	Panasonic 4KW AC servo motor , Panasonic AC servo motor driver , 4KW servo motor with warranty

MHMF402L1G6M Panasonic 4KW AC Servo Motor

Product Overview

Part Number	MHMF402L1G6M
Product Type	Servo Motor
Product Family	MINAS A6 Family Servo Motor
Motor Type	High inertia, Connector type

Key Features

Power range: 50 W to 22 kW
Input power supply for Driver: Voltage DC 24 V/48 V・AC 100 V/200 V/400 V
23 bit Absolute/Incremental・battery-less Absolute/Incremental encoder
Frequency response: 3.2 kHz

Technical Specifications

Series	MHMF Series
Protection Class	IP67 (Except rotating portion of output shaft and connecting pin part of the motor connector and the encoder connector)
Flange Size	176 mm sq.
Motor Lead-out Configuration	Connector
Motor Encoder Connector	Motor connector: JL10, Encoder connector: Large size JL10
Power Supply Capacity	6.5 kVA
Voltage Specifications	200 V
Rated Output	4000 W
Rated Current [Reference value]	20 A rms
Holding Brake	Without
Mass	16.2 kg
Oil Seal	With
Shaft	Key-way
Rated Torque	19.1 N⋅m
Continuous Stall Torque	22.0 N⋅m
Momentary Max. Peak Torque	57.3 N⋅m
Max. Current [Reference value]	85 A 0-p
Rated Rotational Speed	2000 r/min
Max. Rotational Speed	3000 r/min
Inertia of Rotor	104 x10⁻⁴ kg⋅m²
Recommended Inertia Ratio	5 times or less
Rotary Encoder Specifications	23-bit Absolute/Incremental system
Rotary Encoder Resolution	8388608

Special Order Notice: Please avoid distributing this motor, or equipment containing this motor, to Japan or other regions through Japan.

Encoder Usage Notice: When using a rotary encoder as an incremental system (not using multi-turn data), do not connect a battery for absolute encoder.

Permissible Load Specifications

During Assembly: Radial Load P-direction	1666 N
During Assembly: Thrust Load A-direction	784 N
During Assembly: Thrust Load B-direction	980 N
During Operation: Radial Load P-direction	784 N
During Operation: Thrust Load A, B-direction	343 N

Applicable Drivers

Part Number	Series	Type	I/F Classification	Frame	Supply Voltage
MFDLNB3NE	A6NE series	RTEX, Ultra high-speed Network (Basic type)	RTEX	F-Frame	3-phase 200 V
MFDLNB3SE	A6SE series	Position control type	Pulse train only	F-Frame	3-phase 200 V
MFDLNB3SG	A6SG series	RS485/RS232 Communication type	Pulse, Modbus (RS485 /RS232)	F-Frame	3-phase 200 V
MFDLTB3NF	A6NF series	RTEX, Ultra high-speed Network type (Multi type)	RTEX	F-Frame	3-phase 200 V
MFDLTB3SF	A6SF series	Multifunction type	Analog /Pulse, Modbus (RS485 /RS232)	F-Frame	3-phase 200 V

Torque Characteristics

Specifications and design of the products are subject to change without notice for the product improvement.

Dimensions

Specifications and design of the products are subject to change without notice for the product improvement.

Note: For detailed environmental conditions, permissible load specifications, and motor specification descriptions, please refer to the official instruction manual.
