Panasonic MADDT1205 200W 10A AC Servo Amplifier with 1.0 kHz Frequency Response for MINAS A4 Series

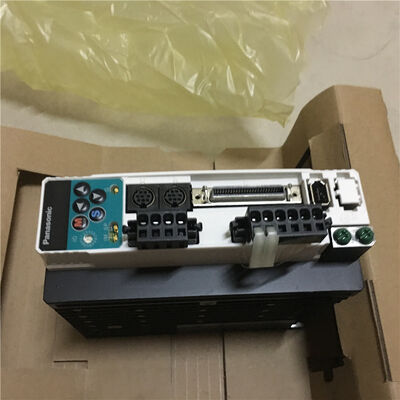

Large Image : Panasonic MADDT1205 200W 10A AC Servo Amplifier with 1.0 kHz Frequency Response for MINAS A4 Series

Product Details:

Place of Origin:	Japan
Brand Name:	Panasonic
Model Number:	MADDT1205

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	100pcs/month

Contact Now Chat Now

Panasonic MADDT1205 200W 10A AC Servo Amplifier with 1.0 kHz Frequency Response for MINAS A4 Series

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries
Certificate:	CE ISO TUV
Highlight:	Panasonic MINAS A4 servo driver , AC servo motor driver with warranty , MINAS A4 family servo motor

Panasonic MADDT1205 Servo Driver, 200W 10A 200-240V AC Single/3-Phase for MINAS A4/A5 Series

Product Overview

The Panasonic MADDT1205 is a compact AC servo driver from the MINAS A4 Series, designed for precision motion control in industrial automation applications. This single-phase servo driver delivers 200W output power with 10A current capacity, making it an ideal solution for applications requiring accurate positioning and speed regulation in space-constrained environments.

As part of Panasonic's MINAS A4 family, the MADDT1205 features a 1.0 kHz frequency response with support for 17-bit absolute/incremental encoders, offering precise position feedback for high-accuracy motion control systems. The ultra-compact A-frame design (40mm width) enables installation in the tightest control cabinets, making it a preferred choice for small-scale automation equipment.

Key Applications

Small pick-and-place machines
Semiconductor handling equipment
PCB drilling and routing machines
Medical diagnostic equipment
Laboratory automation systems
Small CNC machine tools
Factory automation (FA) systems
Positioning tables and indexing systems

Technical Specifications

Parameter	Specification
Brand	Panasonic
Series	MINAS A4 Series
Product Type	AC Servo Driver (Servo Amplifier)
Part Number	MADDT1205 / MADDT1205F / MADDT1205P / MADDT1205N
Power Output	200 W
Output Current	10 A
Load Voltage	240 V
Input Power (Main Circuit)	Single-phase 200-240V AC (+10%/-15%), 50/60 Hz
Input Power (Control Circuit)	Single-phase 200-240V AC (+10%/-15%), 50/60 Hz
Frequency Response	1.0 kHz
Control / Drive Type	Servo AC
Control Methods	Position, Speed, Torque (full-closed control available on "F" variant)
Encoder Feedback	17-bit (131,072 resolution) absolute/incremental encoder; 2500 P/r (10,000 resolution) incremental encoder
External Scale Feedback	A/B phase pulse feedback (MADDT1205F only)
Communication Interfaces	RS-232, RS-485
Number of Motors Controlled	1
Parallel I/O: Control Signal Input	10 general-purpose inputs (servo-ON, alarm clear, over-travel limits, gain switching, etc.)
Parallel I/O: Control Signal Output	6 outputs (servo alarm, servo ready, external brake release, zero speed detection, torque limit)
Parallel I/O: Analog Signal Input	3 inputs (16-bit A/D: 1, 10-bit A/D: 2)
Parallel I/O: Analog Signal Output	2 outputs (speed monitor, torque monitor)
Parallel I/O: Pulse Signal Input	1 input (line driver, max 4 Mpps)
Parallel I/O: Pulse Signal Output	4 outputs (encoder pulse feedback in line driver)
Regeneration	No built-in regenerative resistor (external resistor required)
Safety Function	Without safety function (STO not available)
Operating Temperature	0°C to 55°C (32°F to 131°F)
Storage Temperature	-20°C to 80°C (-4°F to 176°F)
Operating Humidity	Less than 90% RH (non-condensing)
Dimensions (W × H × D)	40 × 150 × 130 mm
Weight	0.8 kg (approx. 1.7 lbs)
Mounting Type	Chassis Mount / Base Mount
Protection Features	Over-voltage protection, over-current protection, over-temperature protection, overload protection
Cooling Method	Natural air cooling (no fan)
RoHS Status	RoHS 2011/65/EU & 2015/863/EU Compliant
MSL (Moisture Sensitivity Level)	1 (Unlimited)
ECCN	EAR99
HTSUS	8537.10.9170
Product Status	Obsolete (Discontinued)

Sources: Specifications compiled from DigiKey, Panasonic official datasheet, and industry technical resources.

Key Features

1. Ultra-Compact A-Frame Design

With a slim 40mm width -- the smallest in the MINAS A4 series -- the MADDT1205 is designed for space-constrained control cabinets and multi-axis systems where every millimeter counts.

2. 1.0 kHz High-Frequency Response

Delivers responsive motor control with 1.0 kHz frequency response, reducing settling time and improving productivity in high-speed positioning applications.

3. High-Resolution Encoder Support

Compatible with Panasonic's 17-bit absolute encoder (131,072 ppr) and 2500 P/r incremental encoder, providing precise position feedback for applications demanding high accuracy. When using as an incremental system, no battery connection is required -- simply set Parameter Pr.0B to "1".

4. Multiple Control Modes

Supports Position, Speed, and Torque control modes, with the "F" variant offering full-closed control capability using external feedback scales.

5. Flexible Communication Interfaces

Integrated RS-232 and RS-485 interfaces enable easy connection to PLCs, HMIs, and host controllers for parameter configuration and real-time monitoring. RS-485 supports multi-axis networking (up to 15 axes).

6. Comprehensive I/O Capability

Features 10 digital inputs, 6 digital outputs, 3 analog inputs, and 2 analog outputs, providing extensive connectivity for complex automation systems.

7. Real-Time Auto-Tuning

Advanced real-time auto gain tuning automatically adjusts servo gains based on load conditions, simplifying setup and optimizing performance without manual intervention.

8. Natural Convection Cooling

Fanless design with natural air cooling ensures silent operation and reduced maintenance requirements -- ideal for clean environments like medical and semiconductor facilities.

9. RoHS Compliant

Fully compliant with EU RoHS directives (2011/65/EU and 2015/863/EU), containing no restricted hazardous substances.

Compatible Motors

The MADDT1205 is designed to pair with Panasonic MINAS A4 Series 200W AC servo motors. Compatible motor models include:

Motor Type	Model Number (No Brake)	Model Number (With Brake)	Description
Small Inertia (Standard)	MSMD012P1U	MSMD012P1V	200W, 200V, high dynamic response
Medium Inertia (High Torque)	MHMD012P1U	MHMD012P1V	200W, 200V, high torque at low speeds

Compatibility Note: The MADDT1205 is rated for 200W output but is also compatible with 100W motors. Always verify motor specifications before integration. For wiring reference with MSMD012P1U motor and PCI-9014 motion control card, refer to application notes.

Series Variants

Part Number	Variant Description	Key Differences
MADDT1205	Standard model	Pulse input, single-phase 200-240V, 200W
MADDT1205F	Full-closed control model	Supports external feedback scale (A/B phase pulse)
MADDT1205P	A4P Series (Index drive)	Built-in NC positioning functions, I/O command positioning
MADDT1205N	A4N Series (Network drive)	Network communication capability
