MADDT1207 Panasonic MINAS A4 Family Servo Driver

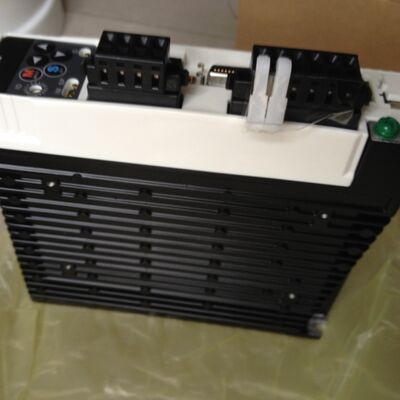

Large Image : MADDT1207 Panasonic MINAS A4 Family Servo Driver

Product Details:

Place of Origin:	Japan
Brand Name:	Panasonic
Model Number:	MADDT1207

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	100pcs/month

Contact Now Chat Now

MADDT1207 Panasonic MINAS A4 Family Servo Driver

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries
Certificate:	CE ISO TUV
Highlight:	Panasonic MINAS A4 servo driver , AC servo motor driver , MINAS A4 servo motor

Panasonic MINAS A4 Family Servo Driver - MADDT1207

Part Number	MADDT1207
Product	Servo Driver
Series	A4 Series - Standard Model
Family Name	MINAS A4
Frame	A-Frame

Control Features

Pulse train position command
Analog velocity command
Analog torque command
Full-closed control serial communication
Frequency response: 1.0 kHz
Interface: Analog / Pulse input

Physical Specifications

Dimensions (W × H × D)	40 × 150 × 130 mm
Mass	0.8 kg

Basic Specifications

Power Input

Main Circuit	Single phase 200 V (+10% -15%) to 240 V (+10% -15%) 50/60 Hz
Control Circuit	Single phase 200 V (+10% -15%) to 240 V (+10% -15%) 50/60 Hz

Encoder Feedback

17 bit (131072 resolution) absolute/incremental encoder
2500 P/r (10000 resolution) incremental encoder

When using as an incremental system (not using multiturn data), do not connect the battery for absolute encoder. Parameter Pr. 0B must be set to "1" (factory settings).

Parallel I/O Connector

Control Signal Input	10 inputs including Servo-ON, Control mode switching, Gain switching, Alarm clear, Over-travel inhibit
Control Signal Output	6 outputs including Servo alarm, Servo ready, Brake release signal, Zero speed detection
Analog Signal Input	3 inputs (16 bit A/D: 1 input, 10 bit A/D: 2 inputs)
Analog Signal Output	2 outputs for monitoring (Speed monitor and Torque monitor)
Pulse Signal Input	2 inputs
Pulse Signal Output	4 outputs for encoder pulse or feedback scale pulse

Communication Functions

RS232	1:1 communication to host with RS232 interface
RS485	1:n communication up to 15 axes to host with RS485 interface

Control Modes

Switching among 7 control modes enabled:

Position control
Speed control
Torque control
Position/Speed control
Position/Torque control
Velocity/Torque control
Full-closed control

Additional Features

External scale feedback via serial communication
No built-in regenerative resistor (external resistor only)
Safety function: Not included
