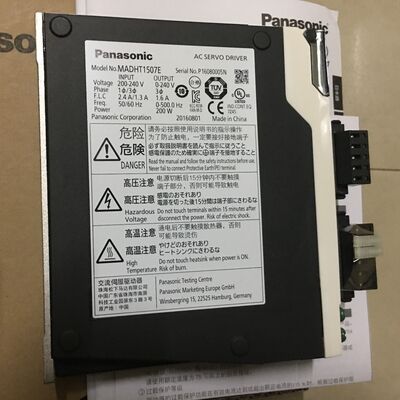

MADHT1507E Panasonic MINAS A5 Family Servo Driver

Large Image : MADHT1507E Panasonic MINAS A5 Family Servo Driver

Product Details:

Place of Origin:	Japan
Brand Name:	Panasonic
Model Number:	MADHT1507E

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	100pcs/month

Contact Now Chat Now

MADHT1507E Panasonic MINAS A5 Family Servo Driver

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries
Certificate:	CE ISO TUV
Highlight:	Panasonic MINAS A5 servo driver , AC servo motor driver , MINAS A5 servo motor

MADHT1507E Panasonic MINAS A5 Family Servo Driver

Product Overview

Part Number	MADHT1507E
Product Family	MINAS A5
Series	A5E series
Control Type	Position control type
Safety Function	Without safety function

Key Features

Power range: 10 W to 7.5 kW
Input power supply: DC 24 V/48 V or AC 100 V/200 V/400 V
20-bit incremental / 17-bit Absolute/Incremental encoder
Frequency response: 2.3 kHz

Technical Specifications

Frame Type	A-Frame
Control Method	Position control
Power Device Max. Current Rating	10A
Current Detector Current Rating	7.5A
Supply Voltage	Single/3-phase 200 V
I/F Classification	Pulse train only
Dimensions (W×H×D)	40 × 150 × 130 mm
Mass	0.8 kg

Basic Specifications

Input Power: Main Circuit	Single/3-phase 200 V (+10% -15%) to 240 V (+10% -15%) 50/60 Hz
Input Power: Control Circuit	Single phase 200 V (+10% -15%) to 240 V (+10% -15%) 50/60 Hz
Encoder Feedback	20-bit (1,048,576 resolution) incremental encoder, 5-wire serial
Parallel I/O Connector: Control Signal Input	General purpose 10 inputs (function selected by parameters)
Parallel I/O Connector: Control Signal Output	General purpose 6 outputs (function selected by parameters)
Parallel I/O Connector: Analog Signal Output	2 outputs (Analog monitor: 2 output)
Parallel I/O Connector: Pulse Signal Input	2 inputs (Photo-coupler input, Line receiver input)
Parallel I/O Connector: Pulse Signal Output	4 outputs (Line driver: 3 output, open collector: 1 output)
Communication Function	USB interface for parameter setting and status monitoring
Regeneration	No built-in regenerative resistor (external resistor only)
Control Mode	Switching among Position control, Internal velocity command, and Position/Internal velocity command

Dimensions

Dimensions image placeholder - refer to catalog for detailed specifications

*The external dimension shown is for A5II and A5 series, but the dimension is common between A5II, A5 series and A5IIE, A5E series. Please refer to the catalogue for detail dimension.

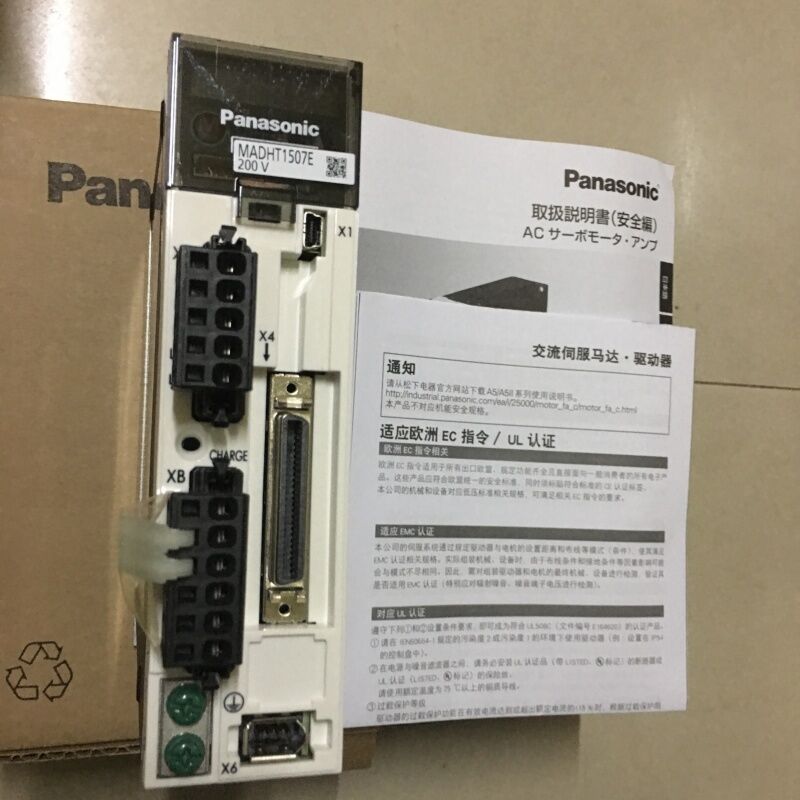

Connector Specification

Connector specification image placeholder - refer to catalog for detailed specifications

*The external dimension shown is for A5II and A5 series. Please refer to the catalogue for detail dimension.

For more details, please refer to the instruction manual.
