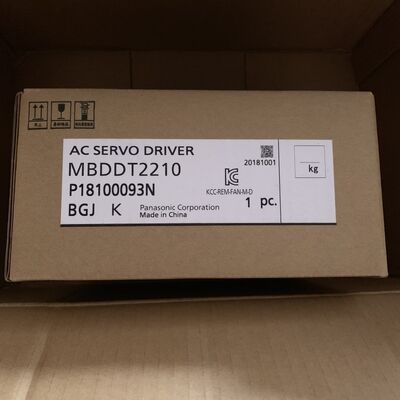

Panasonic MBDDT2210 400W 15A Single Phase 200-240V AC Servo Driver for MINAS A4 Series

The Panasonic MBDDT2210 is a high-performance AC servo driver from the MINAS A4 Series, designed for precision motion control in industrial automation applications. Engineered with advanced vector control technology, this single-phase servo driver delivers 400W output power with 15A current capacity, making it an ideal solution for applications requiring accurate positioning, speed regulation, and torque control.

As part of Panasonic's renowned MINAS A4 family, the MBDDT2210 offers a 1.0 kHz frequency response for fast and responsive system performance, significantly reducing settling time compared to previous generations. The compact B-frame design (55mm width) allows for space-saving installation in control cabinets, while maintaining robust thermal management through an integrated cooling fan.

• Semiconductor manufacturing equipment (die bonders, wire bonders)
• Pick-and-place machines and multi-axis robots
• PCB drilling and routing machines
• CNC machine tools
• Packaging machinery
• Injection molding machines and industrial automation systems

• High-Speed Response: With a 1.0 kHz frequency response, the MBDDT2210 delivers exceptional responsiveness, enabling faster settling times and improved productivity in high-speed pick-and-place and SMT applications.
• Multiple Control Modes: Supports Position, Speed, Torque, and Full-closed control modes, providing flexibility for diverse application requirements from simple indexing to complex closed-loop positioning with external scale feedback.
• High-Resolution Feedback Compatibility: Compatible with Panasonic's 17-bit absolute encoder (131072 ppr) and 2500 P/r incremental encoder, offering precise position feedback for high-accuracy motion control systems.
• Advanced Vibration Control: Built-in vibration suppression algorithms minimize mechanical resonance and settling time, improving system stability and reducing wear on mechanical components.
• Real-Time Auto-Tuning: The Real-time auto gain tuning feature automatically adjusts servo gains based on load conditions, simplifying setup and optimizing performance without manual intervention.
• Flexible Communication: Integrated RS-232 and RS-485 interfaces enable easy connection to PLCs, HMIs, and host controllers for parameter configuration and real-time monitoring.
• Compact Footprint: The slim 55mm width design allows for high-density panel mounting, reducing cabinet space requirements.
• Robust Environmental Protection: Designed for industrial environments with a wide operating temperature range (0°C to 55°C) and protection against vibration up to 5.9 m/s², ensuring reliable operation in demanding conditions.

The MBDDT2210 is designed to pair with Panasonic MINAS A4 Series 400W AC servo motors. Common compatible motor models include:

Contact our sales team to confirm motor compatibility for your specific application.

• 1 × Panasonic MBDDT2210 Servo Driver (Unit only; motor and cables sold separately)

For optimal performance and longevity, ensure the installation environment meets the following requirements:

• Indoor use only (not waterproof; avoid rain or direct sunlight)
• Non-corrosive atmosphere - free from hydrogen sulfide, sulfurous acid, chlorine, ammonia, and other corrosive gases
• Free from flammable gases, oil mist, iron powder, or cutting chips
• Well-ventilated area with low humidity and dust-free conditions
• Easy access for inspection and cleaning
• Away from heat sources such as heaters or large winding resistors

• Use shielded cables for signal lines to minimize electromagnetic interference
• Connect the console connector securely to CN X4 connector
• Never pull cables to unplug - always grasp the connector body
• Do not apply strong impact or drop the unit
