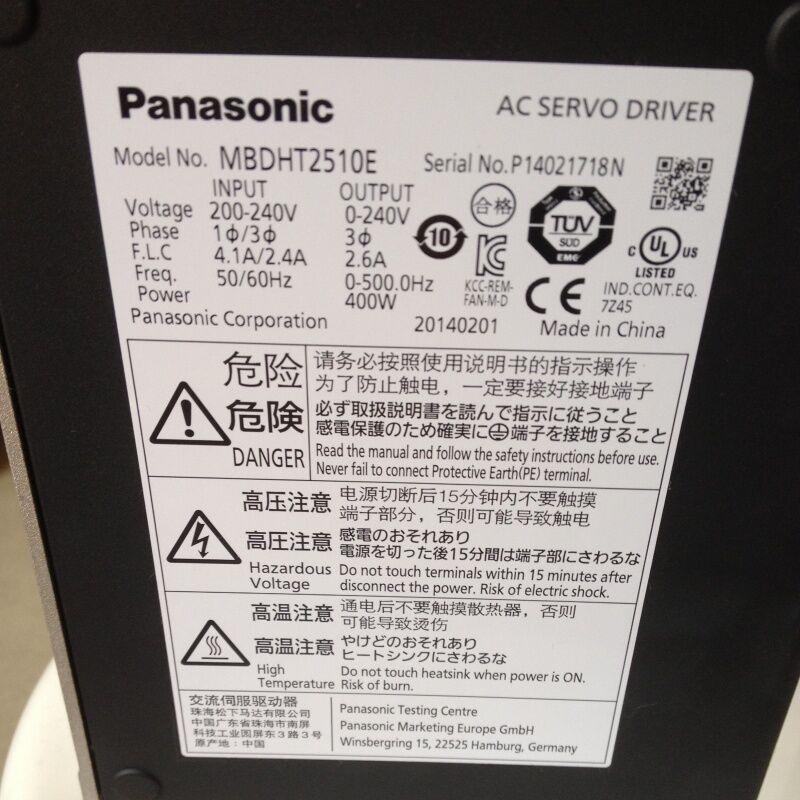

MBDHT2510E Panasonic MINAS A5 Family Servo Driver

Large Image : MBDHT2510E Panasonic MINAS A5 Family Servo Driver

Product Details:

Place of Origin:	Japan
Brand Name:	Panasonic
Model Number:	MBDHT2510E

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable

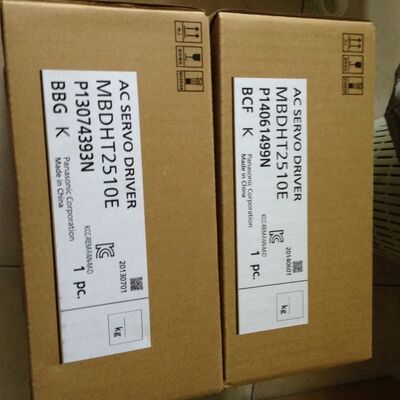

Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	100pcs/month

Contact Now Chat Now

MBDHT2510E Panasonic MINAS A5 Family Servo Driver

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries
Certificate:	CE ISO TUV
Highlight:	Panasonic MINAS A5 servo driver , AC servo motor driver , MINAS A5 servo motor

MBDHT2510E Panasonic MINAS A5 Family Servo Driver

High-performance servo driver from Panasonic's MINAS A5 series, designed for precision position control applications in industrial automation.

Product Overview

Part Number	MBDHT2510E
Product Type	Servo Driver
Series	A5E series
Control Type	Position control
Safety Function	Without safety function

Key Features

Power range: 10 W to 7.5 kW
Input power supply options: DC 24 V/48 V or AC 100 V/200 V/400 V
High-resolution encoder: 20-bit incremental or 17-bit Absolute/Incremental
Fast frequency response: 2.3 kHz
Multiple control modes: Position control, Internal velocity command, Position/Internal velocity command
USB interface for parameter setting and status monitoring

Technical Specifications

Specification	Details
Family Name	MINAS A5
Series	A5E series
Control Method	Position control
Frame	B-Frame
Frequency Response	2.3 kHz
Power Device Max. Current Rating	15A
Current Detector Current Rating	10A
Supply Voltage	Single/3-phase 200 V
I/F Classification	Pulse train only
Dimensions (W×H×D)	55 mm × 150 mm × 130 mm
Mass	1.0 kg

Basic Specifications

Item	Specifications
Input Power: Main Circuit	Single/3-phase 200 V (+10% -15%) to 240 V (+10% -15%) 50/60 Hz
Input Power: Control Circuit	Single phase 200 V (+10% -15%) to 240 V (+10% -15%) 50/60 Hz
Encoder Feedback	20-bit (1048576 resolution) incremental encoder, 5-wire serial
Parallel I/O: Control Input	General purpose 10 inputs (function selected by parameters)
Parallel I/O: Control Output	General purpose 6 outputs (function selected by parameters)
Parallel I/O: Analog Output	2 outputs (Analog monitor)
Parallel I/O: Pulse Input	2 inputs (Photo-coupler input, Line receiver input)
Parallel I/O: Pulse Output	4 outputs (Line driver: 3 output, open collector: 1 output)
Communication	USB interface for parameter setting and status monitoring
Regeneration	No built-in regenerative resistor (external resistor only)
Control Mode	Switching among Position control, Internal velocity command, and Position/Internal velocity command

Dimensions

Unit: mm

Dimensions diagram - common across A5II, A5 series, A5IIE, and A5E series

The external dimension shown is for A5II and A5 series, but the dimension is common between A5II, A5 series and A5IIE, and A5E series. Please refer to the catalogue for detailed dimensions.

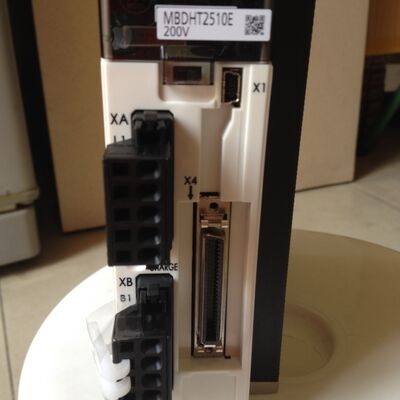

Connector Specification

Connector layout and specifications

For more detailed information, please refer to the instruction manual.
