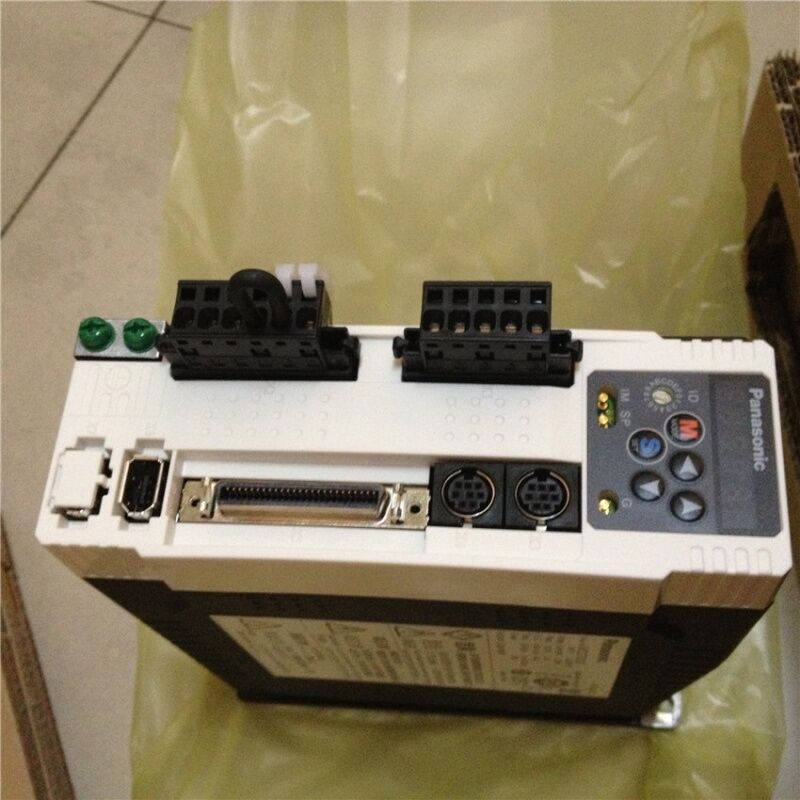

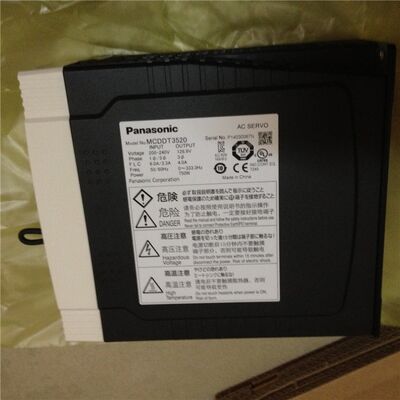

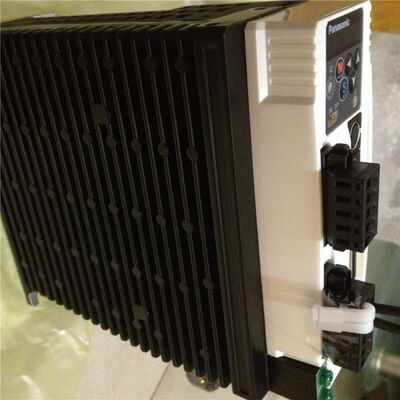

Panasonic MCDDT3520 750W 30A 240V AC Servo Drive MINAS A4 Series for Industrial Automation

Large Image : Panasonic MCDDT3520 750W 30A 240V AC Servo Drive MINAS A4 Series for Industrial Automation

Product Details:

Place of Origin:	Japan
Brand Name:	Panasonic
Certification:	CE UL ROSH
Model Number:	MCDDT3520

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original brand new
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	100pcs/month

Contact Now Chat Now

Panasonic MCDDT3520 750W 30A 240V AC Servo Drive MINAS A4 Series for Industrial Automation

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries
Certificate:	CE ISO TUV
Highlight:	Panasonic MINAS A4 servo driver , AC servo motor driver , MCDDT3520 servo driver with warranty

Panasonic MCDDT3520 Servo Drive 750W 30A 240V AC MINAS A4 Series

Product Overview

The Panasonic MCDDT3520 is a high-performance AC servo driver from the MINAS A4 series, engineered for precision motion control in industrial automation applications. With a rated output of 750W and a peak current of 30A, this C-Frame driver delivers reliable and accurate control for single-axis servo systems.

Technical Specifications

Specification	Value
Manufacturer	Panasonic Industrial Automation Sales
Series	MINAS A4
Frame Size	C-Frame
Part Status	Obsolete (Discontinued)
Type	AC Servo Driver (Module)
Number of Motors Controlled	1
Wattage - Load	750 W
Current - Output	30 A
Voltage - Load	240 V
Voltage - Supply	Single/3-phase 200 ~ 240VAC (+10% / -15%) 50/60 Hz
Control Method	Position, Speed, Torque, Full-closed control, Serial communication
Frequency Response	1.0 kHz
Interface	RS-232, RS-485
Encoder Feedback	17-bit absolute/incremental encoder (131072 resolution); 2500 P/r (10000 resolution) incremental encoder
Mounting Type	Chassis Mount
Operating Temperature	0°C ~ 55°C
Dimensions (W × H × D)	65mm × 150mm × 170mm
Weight	3.6 lbs (approx. 1.6 kg)

Key Features

Multiple Control Modes: Supports switching among multiple control modes including Position Control, Speed Control, Torque Control, Full-closed Control, and Serial communication, adaptable to diverse application requirements.
High-Resolution Feedback: Compatible with 17-bit absolute/incremental encoders (131072 pulses/revolution) for ultra-fine positioning accuracy.
Flexible Command Input: Supports pulse train position commands, analog velocity commands, and analog torque commands to suit various automation needs.
Robust I/O Configuration: Features extensive control signal inputs and outputs, including servo alarm, brake release signal, and positioning completion signals.
Built-in Regeneration: Includes built-in regenerative resistor (external resistor also enabled).
Comprehensive Protection: Includes undervoltage, overvoltage, overcurrent, overload, regenerative discharge, encoder error, position error, and over-speed protection.
Serial Communication: RS-232 supports 1:1 communication with host; RS-485 supports 1:n communication up to 15 axes.

Compatible Servo Motors

The MCDDT3520 is designed for use with Panasonic MINAS A4 series servo motors in the 750W power range.

Motor Type	Inertia Class	Typical Models
Medium Inertia	Standard	MHMA082P1G, MHMA082P1H
Low Inertia	High-speed	MSMA082P1G, MSMA082P1H
Ultra-low Inertia	Small/miniature	MAMA082P1G, MAMA082P1H

Note: Please verify motor compatibility with your existing system before purchasing. The driver supports both incremental and absolute encoder configurations.

Model Variants

Model	Description
MCDDT3520	A4 Series Standard model - Pulse train position command, analog velocity/torque command, full-closed control, serial communication
MCDDT3520P	A4P Series - Built-in NC function, I/O command type, I/O combination positioning commands

Applications

Ideal for precision motion control applications requiring 750W power output:

Industrial Automation Systems
CNC Machinery & Machine Tools
Robotics & Pick-and-Place Equipment
Packaging & Labeling Machinery
Material Handling & Conveyor Systems
Assembly Lines
Semiconductor Manufacturing Equipment
