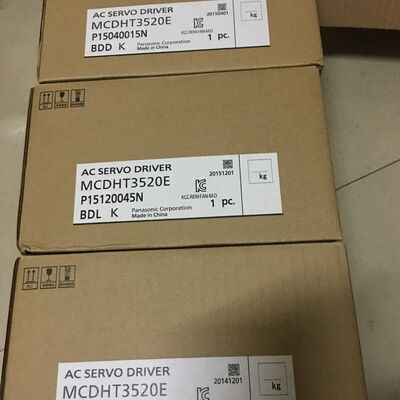

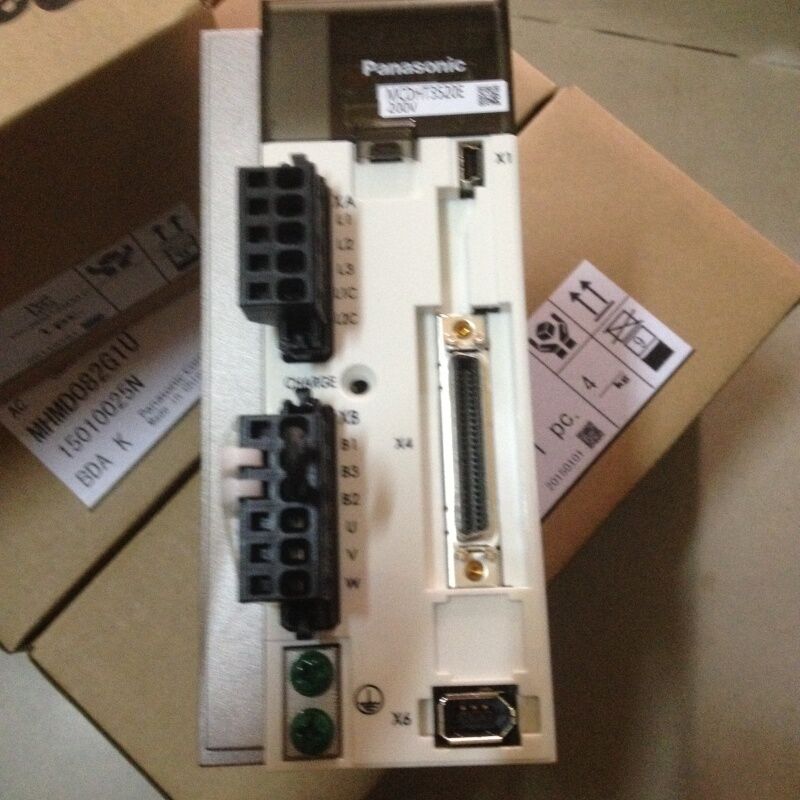

MCDHT3520E Panasonic MINAS A5 Family Servo Driver

MCDHT3520E Panasonic MINAS A5 Family Servo Driver
MCDHT3520E Panasonic MINAS A5 Family Servo Driver MCDHT3520E Panasonic MINAS A5 Family Servo Driver

Large Image :  MCDHT3520E Panasonic MINAS A5 Family Servo Driver

Product Details:
Place of Origin: Japan
Brand Name: Panasonic
Model Number: MCDHT3520E
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: original package
Delivery Time: 3 working days
Payment Terms: T/T,Western Union
Supply Ability: 100pcs/month
Contact Now Chat Now

MCDHT3520E Panasonic MINAS A5 Family Servo Driver

Description
Condition: Original Brand New Warranty: One Year
Shipping Way: DHL FedEx Express Application: Automation Industries, Oil, Gas, Chemical Industries
Certificate: CE ISO TUV
Highlight:

Panasonic MINAS A5 servo driver

,

AC servo motor driver

,

MCDHT3520E servo driver

MCDHT3520E Panasonic MINAS A5 Family Servo Driver
High-performance servo driver from Panasonic's MINAS A5 series, designed for precision position control applications in industrial automation.
Product Overview
Part Number MCDHT3520E
Product Family MINAS A5
Series A5E series
Control Type Position control type
Safety Function Without safety function
Frame Size C-Frame
Key Features
  • Power range: 10 W to 7.5 kW
  • Input power supply options: DC 24 V/48 V or AC 100 V/200 V/400 V
  • High-resolution encoder: 20-bit incremental / 17-bit Absolute/Incremental
  • Fast frequency response: 2.3 kHz
  • Multiple control modes: Position control, Internal velocity command, Position/Internal velocity command
  • Built-in regenerative resistor with external resistor capability
  • USB interface for parameter setting and status monitoring
Technical Specifications
Frequency Response 2.3 kHz
Control Method Position control
Max Current Rating (Power Device) 30A
Current Detector Rating 20A
Supply Voltage Single/3-phase 200 V
Interface Type Pulse train only
Dimensions (W×H×D) 65 × 150 × 170 mm
Mass 1.6 kg
Electrical Specifications
Main Circuit Input Power Single/3-phase 200 V (+10% -15%) to 240 V (+10% -15%) 50/60 Hz
Control Circuit Input Power Single phase 200 V (+10% -15%) to 240 V (+10% -15%) 50/60 Hz
Encoder Feedback 20-bit (1,048,576 resolution) incremental encoder, 5-wire serial
I/O Configuration
Control Signal Input 10 general purpose inputs (function selectable by parameters)
Control Signal Output 6 general purpose outputs (function selectable by parameters)
Analog Signal Output 2 outputs (Analog monitor)
Pulse Signal Input 2 inputs (Photo-coupler input, Line receiver input)
Pulse Signal Output 4 outputs (Line driver: 3 output, open collector: 1 output)
Communication & Control
Communication Function USB interface for computer connection
USB Function Parameter setting and status monitoring
Control Modes Switching between Position control, Internal velocity command, and Position/Internal velocity command
Note: The external dimensions shown are common between A5II, A5 series and A5IIE, A5E series. Please refer to the catalogue for detailed dimensional information.
