Panasonic MCDKT3520E MINAS A5 Series Servo Driver 30A 240V 750W AC Servo Drive for Industrial Automation

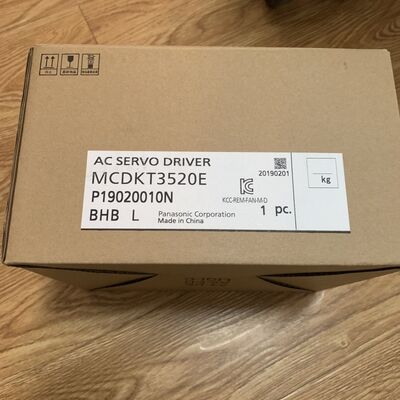

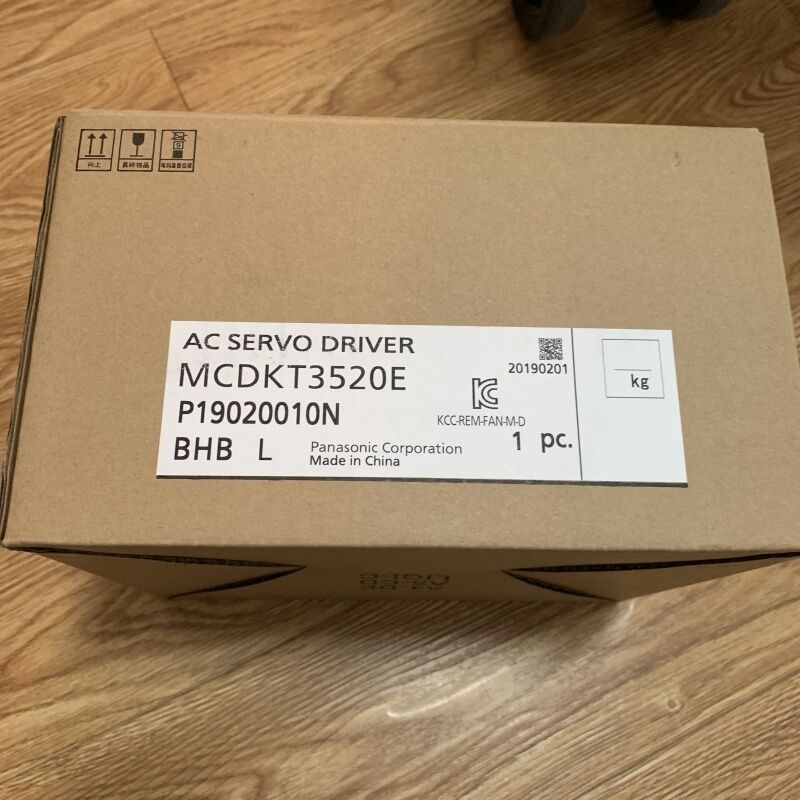

Large Image : Panasonic MCDKT3520E MINAS A5 Series Servo Driver 30A 240V 750W AC Servo Drive for Industrial Automation

Product Details:

Place of Origin:	Japan
Brand Name:	Panasonic
Model Number:	MCDKT3520E

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	100pcs/month

Contact Now Chat Now

Panasonic MCDKT3520E MINAS A5 Series Servo Driver 30A 240V 750W AC Servo Drive for Industrial Automation

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries
Certificate:	CE ISO TUV
Highlight:	Panasonic MINAS A5 servo driver , AC servo motor driver , MCDKT3520E servo driver

Panasonic MCDKT3520E Servo Driver 30A 240V MINAS A5 Series

Panasonic MCDKT3520E MINAS A5IIE Servo Driver, 30A 240V AC Servo Drive, Position Control, 750W

Product Overview

The Panasonic MCDKT3520E is a high-performance AC servo driver from the MINAS A5IIE series, designed for precision motion control in demanding industrial automation applications. This position control type servo drive delivers exceptional speed response and positioning accuracy, making it an ideal choice for CNC machinery, robotics, automated assembly lines, and high-precision manufacturing equipment.

Engineered with advanced DSP technology and a 20-bit incremental encoder interface, the MCDKT3520E achieves a frequency response of 2.3 kHz, enabling rapid acceleration/deceleration cycles and superior vibration suppression for smoother operation. The driver features real-time auto-tuning capabilities that simplify setup and optimize performance across varying load conditions.

Key Features

High-Speed Response: 2.3 kHz frequency response for rapid positioning and high-throughput applications
High-Resolution Feedback: 20-bit (1,048,576 resolution) incremental encoder support for exceptional precision
Versatile Control Modes: Switchable between Position control, Internal velocity command, and Position/Internal velocity command
Flexible Communication: USB port for PC connection (PANATERM software), plus RS-232 and RS-485 interfaces
Robust Protection: Built-in over-voltage, over-current, and thermal protection for reliable operation
Easy Setup: USB interface enables quick parameter configuration and real-time status monitoring
Regenerative Circuit: Built-in regenerative resistor with external resistor option

Technical Specifications

Specification	Value
Part Number	MCDKT3520E
Series	MINAS A5IIE
Type	Position Control Type (without safety function)
Frame Size	C-Frame
Input Voltage - Main Circuit	Single/3-phase 200-240V AC, +10%/-15%, 50/60Hz
Input Voltage - Control Circuit	Single-phase 200-240V AC, +10%/-15%, 50/60Hz
Current Output	30A
Load Voltage	240V
Load Wattage	750W
Frequency Response	2.3 kHz
Encoder Feedback	20-bit incremental encoder, 5-wire serial (1,048,576 resolution)
Communication Interfaces	USB, RS-232, RS-485
Parallel I/O - Inputs	10 general-purpose inputs (function selectable by parameters)
Parallel I/O - Outputs	6 general-purpose outputs (function selectable by parameters)
Pulse Inputs	2 inputs (Photo-coupler input, Line receiver input)
Pulse Outputs	4 outputs (3 line driver, 1 open collector)
Analog Outputs	2 outputs (Analog monitor)
Mounting Type	Chassis mount
Operating Temperature	0°C to 55°C
Weight	1.6 kg (3.6 lbs)
Dimensions (W x H x D)	65 x 150 x 170 mm
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
HTSUS Code	8537.10.9170
ECCN	EAR99

Applications

The Panasonic MCDKT3520E servo driver is ideal for:

CNC Machinery - Precision positioning for milling, routing, and cutting equipment
Robotics - Accurate motion control for articulated arms and gantry systems
Automated Assembly Lines - High-speed pick-and-place and indexing operations
Packaging Machinery - Synchronized motion for wrapping, filling, and sealing equipment
High-Precision Manufacturing - Semiconductor fabrication, electronic component assembly, and PCB assembly equipment

Compatibility

This driver is designed for use with Panasonic MINAS A5 series AC servo motors, particularly the MSMD082G1U and MHMD082G1U (750W) models. Compatible with both incremental and absolute encoder feedback systems.

Installation & Setup

Mounting: Chassis mount with panel or DIN rail compatibility
Configuration: USB connection to PC for parameter setting using PANATERM software
Auto-Tuning: Real-time auto-tuning automatically adjusts gain parameters for optimal performance
Cooling: Integrated cooling fan for thermal management
