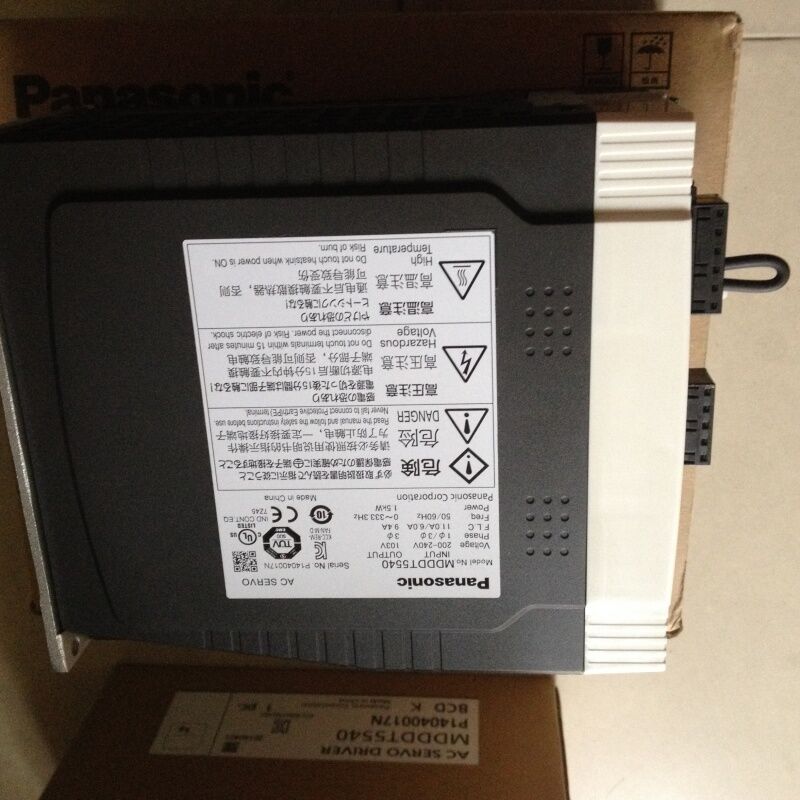

MDDDT5540 Panasonic MINAS A4 Family Servo Driver

MDDDT5540 Panasonic MINAS A4 Family Servo Driver
MDDDT5540 Panasonic MINAS A4 Family Servo Driver MDDDT5540 Panasonic MINAS A4 Family Servo Driver

Large Image :  MDDDT5540 Panasonic MINAS A4 Family Servo Driver

Product Details:
Place of Origin: Japan
Brand Name: Panasonic
Model Number: MDDDT5540
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable

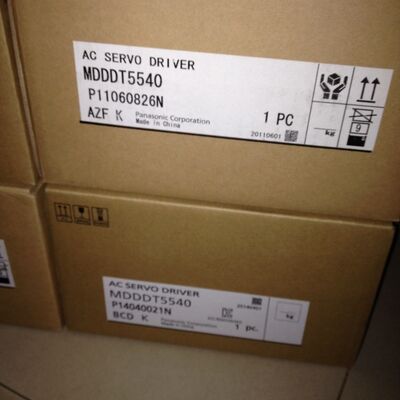

Packaging Details: original package
Delivery Time: 3 working days
Payment Terms: T/T,Western Union
Supply Ability: 100pcs/month
Contact Now Chat Now

MDDDT5540 Panasonic MINAS A4 Family Servo Driver

Description
Condition: Original Brand New Warranty: One Year
Shipping Way: DHL FedEx Express Application: Automation Industries, Oil, Gas, Chemical Industries
Certificate: CE ISO TUV
Highlight:

Panasonic MINAS A4 servo driver

,

AC servo motor driver

,

MDDDT5540 servo driver with warranty

MDDDT5540 Panasonic MINAS A4 Family Servo Driver
The MDDDT5540 is a high-performance servo driver from Panasonic's MINAS A4 series, designed for precision motion control applications in industrial automation.
Product Overview
Part Number MDDDT5540
Product Type Servo Driver
Series A4 Series
Frame D-Frame
Control Methods
  • Pulse train position command
  • Analog velocity command
  • Analog torque command
  • Full-closed control serial communication
Physical Specifications
Dimensions (W × H × D) 85 mm × 150 mm × 170 mm
Mass 1.7 kg
Frequency Response 1.0 kHz
Technical Specifications
Power Input
Main Circuit Single/3-phase 200 V (+10% -15%) to 240 V (+10% -15%) 50/60 Hz
Control Circuit Single phase 200 V (+10% -15%) to 240 V (+10% -15%) 50/60 Hz
Feedback Systems
Encoder Feedback 17 bit (131072 resolution) absolute/incremental encoder
2500 P/r (10000 resolution) incremental encoder
External Scale Feedback Serial communication
When using as an incremental system (not using multiturn data), do not connect the battery for absolute encoder. Parameter Pr. 0B must be set to "1" (factory settings).
I/O Configuration
Control Signal Input 10 inputs including Servo-ON, Control mode switching, Gain switching, Alarm clear, and over-travel inhibit
Control Signal Output 6 outputs including Servo alarm, Servo ready, Brake release, and detection signals
Analog Signal Input 3 inputs (16 bit A/D: 1 input, 10 bit A/D: 2 inputs)
Analog Signal Output 2 monitoring outputs for speed and torque monitoring
Pulse Signal Input 2 inputs (line driver or photo-coupler selectable)
Pulse Signal Output 4 outputs for encoder pulse or feedback scale pulse
Communication & Control
Communication Interface RS232, RS485
RS232 Function 1:1 communication with host system
RS485 Function 1:n communication up to 15 axes
Regeneration Built-in regenerative resistor (external resistor compatible)
Control Modes
  • Position control
  • Speed control
  • Torque control
  • Position/Speed control
  • Position/Torque control
  • Velocity/Torque control
  • Full-closed control
