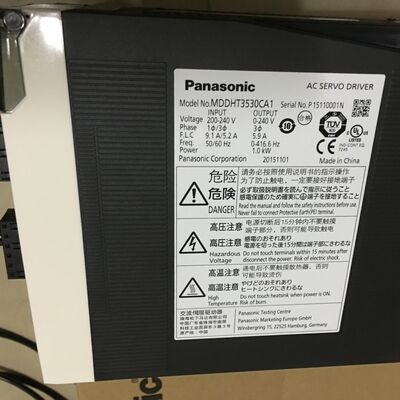

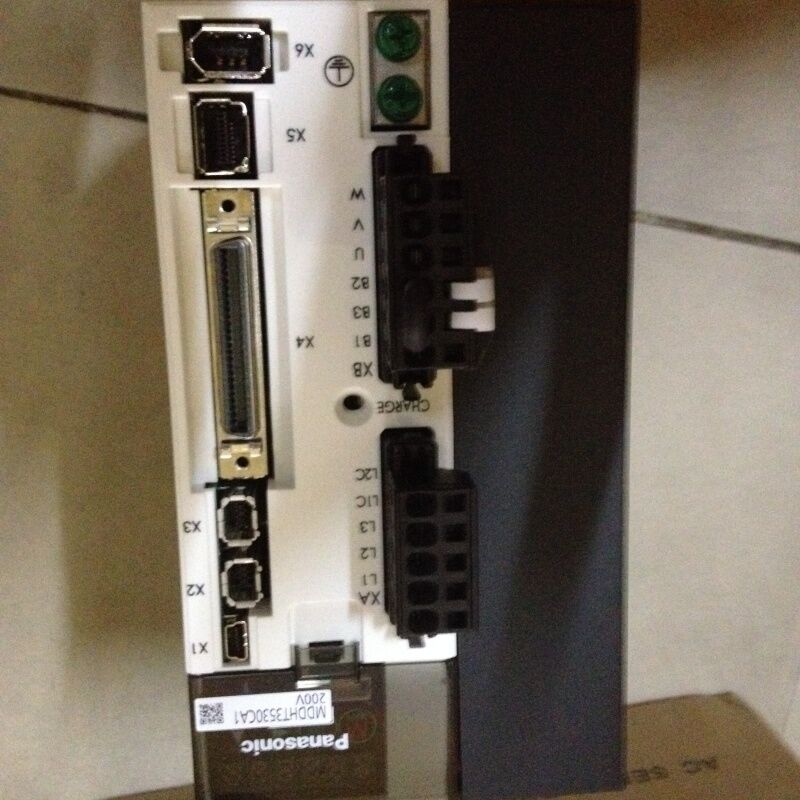

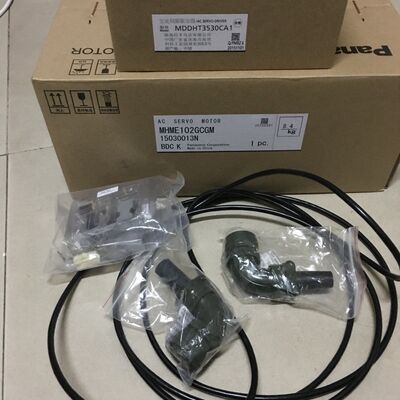

MDDHT3530 Panasonic MINAS A5 Family Servo Driver

Large Image : MDDHT3530 Panasonic MINAS A5 Family Servo Driver

Product Details:

Place of Origin:	Japan
Brand Name:	Panasonic
Model Number:	MDDHT3530

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	100pcs/month

Contact Now Chat Now

MDDHT3530 Panasonic MINAS A5 Family Servo Driver

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries
Certificate:	CE ISO TUV
Highlight:	Panasonic MINAS A5 servo driver , AC servo motor driver MDDHT3530 , MINAS A5 family servo motor

MDDHT3530 Panasonic MINAS A5 Family Servo Driver

The MDDHT3530 is part of Panasonic's MINAS A5 series of high-performance servo drivers, designed for precision motion control applications requiring speed, position, and torque control with full-closed loop capability.

Product Overview

Part Number	MDDHT3530
Product Family	MINAS A5
Series	A5 Series
Control Type	Speed, Position, Torque, Full-closed type
Safety Function	Included
Frame Size	D-Frame

Key Features

Power range: 10 W to 7.5 kW
Input power supply options: DC 24 V/48 V or AC 100 V/200 V/400 V
High-resolution encoder: 20-bit incremental or 17-bit Absolute/Incremental
Fast frequency response: 2.3 kHz
Multiple control modes with seamless switching
Built-in safety functions

Technical Specifications

Frequency Response	2.3 kHz
Control Method	Position control, Velocity control, Torque control, and Full-closed control
Power Device Max. Current Rating	30A
Current Detector Current Rating	30A
Supply Voltage	Single/3-phase 200 V
I/F Classification	Analog/Pulse
Dimensions (W×H×D)	86 × 150 × 170 mm
Mass	1.8 kg

Basic Specifications

Input Power: Main Circuit	Single/3-phase 200 V (+10% -15%) to 240 V (+10% -15%) 50/60 Hz
Input Power: Control Circuit	Single phase 200 V (+10% -15%) to 240 V (+10% -15%) 50/60 Hz
Encoder Feedback	17-bit (131072 resolution) absolute encoder, 7-wire serial 20-bit (1048576 resolution) incremental encoder, 5-wire serial
External Scale Feedback	A/B phase, homing signal differential input. Serial communication is also supported.
Parallel I/O: Control Input	10 general purpose inputs (function selectable by parameters)
Parallel I/O: Control Output	6 general purpose outputs (function selectable by parameters)
Parallel I/O: Analog Input	3 inputs (16-bit A/D: 1 input, 12-bit A/D: 2 inputs)
Parallel I/O: Analog Output	2 outputs (Analog monitor)
Parallel I/O: Pulse Input	2 inputs (Photo-coupler input, Line receiver input)
Parallel I/O: Pulse Output	4 outputs (Line driver: 3 output, open collector: 1 output)
Communication	USB, RS232, RS485
Regeneration	Built-in regenerative resistor (external resistor also enabled)
Control Modes	7 selectable modes: (1) Position control, (2) Speed control, (3) Torque control, (4) Position/speed control, (5) Position/Torque control, (6) Speed/Torque control, (7) Full-closed control

Dimensions & Physical Specifications

Dimensions: 86mm (W) × 150mm (H) × 170mm (D)
Weight: 1.8 kg

Note: The external dimension shown is for A5II and A5 series, but the dimension is common between A5II, A5 series and A5IIE, and A5E series. Please refer to the catalogue for detailed dimensions. The air flow direction of the fan is shown on the external dimension or pin diagram.
