Panasonic MDDHT3530E MINAS A5 Series 1.0kW AC Servo Drive with 200V Input and 2.0kHz Frequency Response

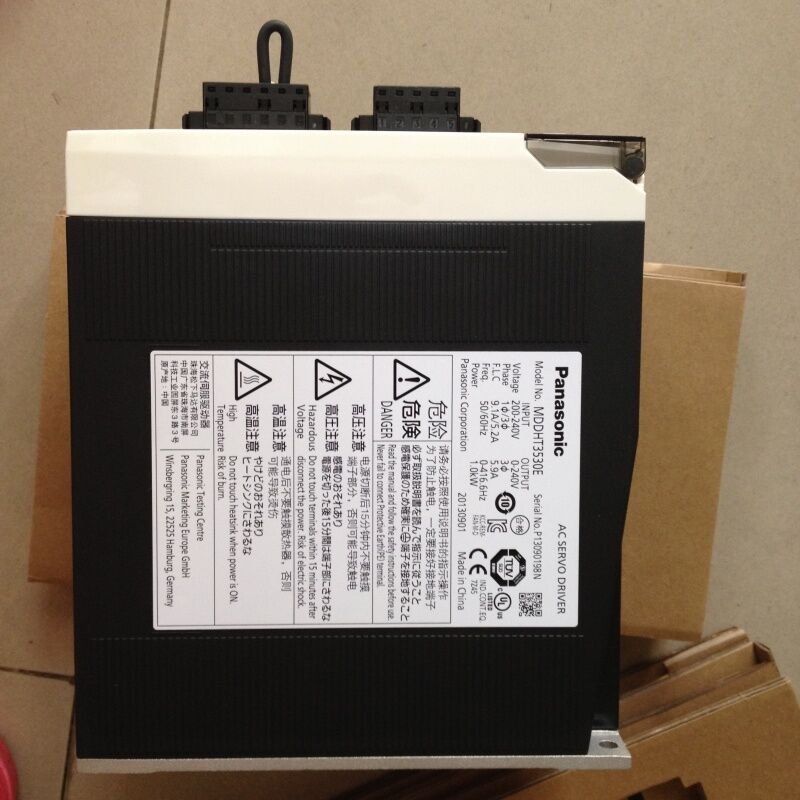

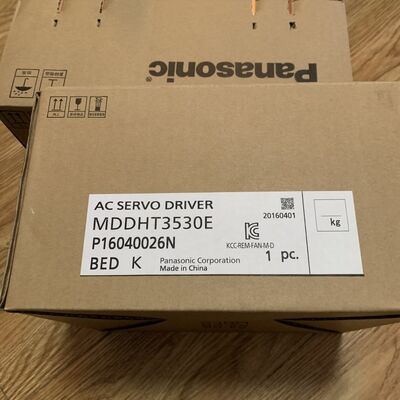

Large Image : Panasonic MDDHT3530E MINAS A5 Series 1.0kW AC Servo Drive with 200V Input and 2.0kHz Frequency Response

Product Details:

Place of Origin:	Japan
Brand Name:	Panasonic
Certification:	CE UL ROSH
Model Number:	MDDHT3530E

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	100pcs/month

Contact Now Chat Now

Panasonic MDDHT3530E MINAS A5 Series 1.0kW AC Servo Drive with 200V Input and 2.0kHz Frequency Response

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries
Certificate:	CE ISO TUV
Highlight:	Panasonic MINAS A5 servo driver , AC servo motor driver , MDDHT3530E servo driver

Panasonic MDDHT3530E MINAS A5 Series 1.0kW AC Servo Drive 200V

Product Overview

The Panasonic MDDHT3530E is a high-performance 1.0kW (1000W) AC Servo Driver engineered for mid-range power applications. Part of the industry-proven MINAS A5 Series, this D-Frame drive is designed to provide the high torque and dynamic response required for heavy-duty industrial machinery.

Operating on a 3-phase 200V-240V input, the MDDHT3530E features a 2.0kHz speed frequency response, ensuring fast settling times and high-precision motion control. Whether used as a replacement in an existing production line or for a new custom automation project, this drive delivers the stability and durability Panasonic is known for.

Technical Specifications

Essential parameters for engineers and maintenance teams:

Feature	Specification
Model Number	MDDHT3530E
Series	MINAS A5 Series
Applicable Motor Power	1.0 kW (1000 W)
Frame Size	D-Frame
Input Voltage	3-Phase 200V - 240V AC
Control Mode	Pulse Train / Analog Voltage
Frequency Response	2.0 kHz (High-Speed Control)
Encoder Support	20-bit Incremental / 17-bit Absolute
Safety Features	STO (Safe Torque Off) Compliant

Key Features & Industrial Benefits

Robust 2.0kHz Response Frequency

The MINAS A5 series offers a 2.0kHz bandwidth, which significantly minimizes mechanical resonance and allows for smooth, vibration-free operation under high-load conditions. This is critical for maintaining accuracy in heavy-duty CNC milling and high-speed packaging.

High-Resolution 20-bit Feedback

The MDDHT3530E supports 20-bit serial encoders, providing over 1 million pulses per revolution. This resolution ensures sub-micron positioning and exceptionally smooth rotation even at very low speeds, protecting your mechanical parts from wear.

Advanced Notch & Adaptive Filters

Equipped with sophisticated vibration suppression technology, the drive automatically detects mechanical resonance and applies notch filters to cancel it. This "Real-time Auto-Gain Tuning" saves hours of manual commissioning time.

Industrial-Grade D-Frame Build

The D-Frame design is built for the factory floor, featuring efficient heat dissipation and a rugged internal architecture. Its compact footprint for a 1kW unit allows for higher density in electrical control cabinets.

Primary Industrial Applications

Heavy-Duty CNC Machinery: Precise X/Y/Z axis control and high-torque tool changers
Automated Packaging: Synchronized sealing, cutting, and high-speed conveyor axes
Textile Equipment: High-tension winding and accurate fabric feeding
Metal Processing: Bending, shearing, and industrial press feeders
Material Handling: High-capacity gantry robots and automated palletizers

Overall Rating

5.0

Based on 50 reviews for this product

Rating Snapshot

The following is the distribution of all ratings

5 stars

100%

4 stars

3 stars

2 stars

1 stars

All Reviews

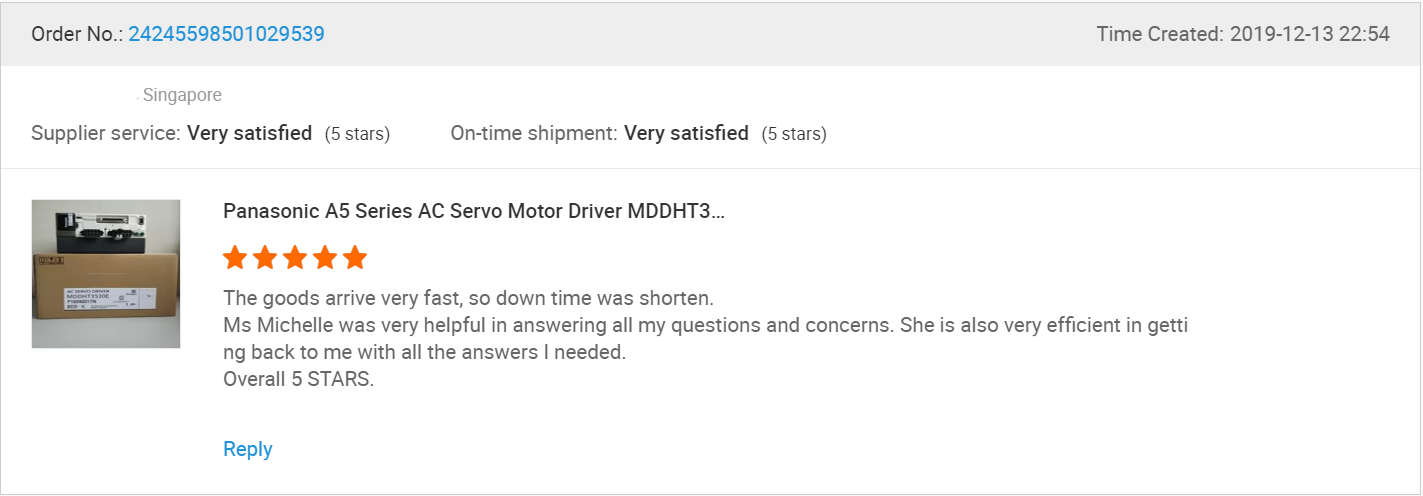

Soh
