MDDHT5540 Panasonic MINAS A5 Family Servo Driver

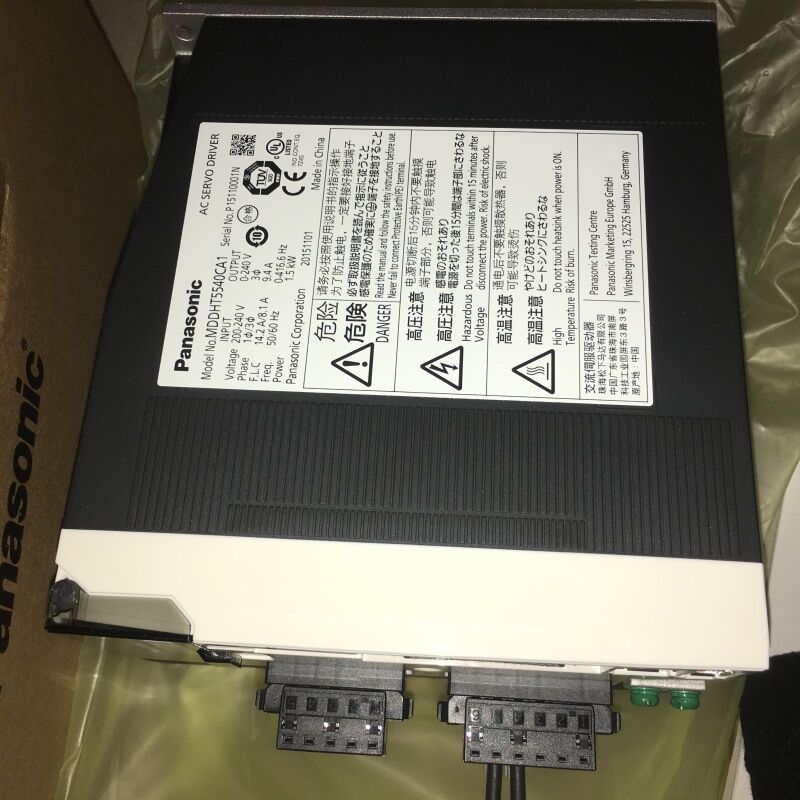

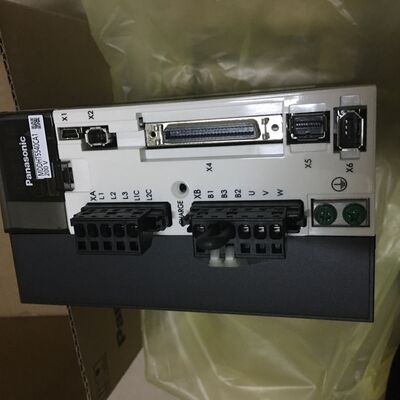

Large Image : MDDHT5540 Panasonic MINAS A5 Family Servo Driver

Product Details:

Place of Origin:	Japan
Brand Name:	Panasonic
Model Number:	MDDHT5540

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	100pcs/month

Contact Now Chat Now

MDDHT5540 Panasonic MINAS A5 Family Servo Driver

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries
Certificate:	CE ISO TUV
Highlight:	Panasonic MINAS A5 servo driver , AC servo motor driver MDDHT5540 , MINAS A5 servo driver with warranty

MDDHT5540 Panasonic MINAS A5 Family Servo Driver

High-performance servo driver from Panasonic's MINAS A5 series, designed for precision motion control applications with comprehensive safety features.

Product Overview

Part Number	MDDHT5540
Product Family	MINAS A5
Series	A5 Series
Control Type	Speed, Position, Torque, Full-closed
Frame	D-Frame
Safety Function	Included

Key Features

Power range: 10 W to 7.5 kW
Input power supply options: DC 24V/48V, AC 100V/200V/400V
High-resolution encoders: 20-bit incremental, 17-bit absolute/incremental
Frequency response: 2.3 kHz
Multiple control methods: Position, Velocity, Torque, and Full-closed control
Built-in regenerative resistor with external resistor support

Technical Specifications

Power Device Max. Current Rating	50A
Current Detector Current Rating	40A
Supply Voltage	Single/3-phase 200V
I/F Classification	Analog/Pulse
Dimensions (W×H×D)	86 × 150 × 170 mm
Mass	1.8 kg

Basic Specifications

Input Power: Main Circuit	Single/3-phase 200V (+10% -15%) to 240V (+10% -15%) 50/60 Hz
Input Power: Control Circuit	Single phase 200V (+10% -15%) to 240V (+10% -15%) 50/60 Hz
Encoder Feedback	17-bit (131,072 resolution) absolute encoder, 7-wire serial 20-bit (1,048,576 resolution) incremental encoder, 5-wire serial
External Scale Feedback	A/B phase, homing signal differential input. Serial communication supported.
Parallel I/O: Control Input	10 general purpose inputs (function selectable by parameters)
Parallel I/O: Control Output	6 general purpose outputs (function selectable by parameters)
Communication Interfaces	USB, RS232, RS485 (1:n communication, max 31 devices)
Control Modes	7 switchable modes: Position, Speed, Torque, Position/Speed, Position/Torque, Speed/Torque, Full-closed control

Dimensions

[Unit: mm]

The external dimension shown is for A5II and A5 series, but the dimension is common between A5II, A5 series and A5IIE, and A5E series. Please refer to the catalogue for detailed dimensions. The air flow direction of the fan is shown on the external dimension or pin diagram.

Connector Specification

The external dimension shown is for A5II and A5 series. Please refer to the catalogue for detailed dimensions. The air flow direction of the fan is shown on the external dimension or pin diagram.
