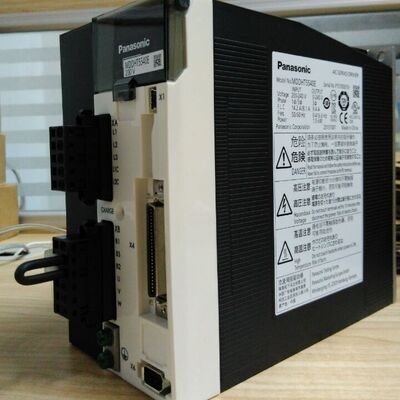

MDDHT5540E Panasonic MINAS A5 Family Servo Driver

Large Image : MDDHT5540E Panasonic MINAS A5 Family Servo Driver

Product Details:

Place of Origin:	Japan
Brand Name:	Panasonic
Model Number:	MDDHT5540E

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable

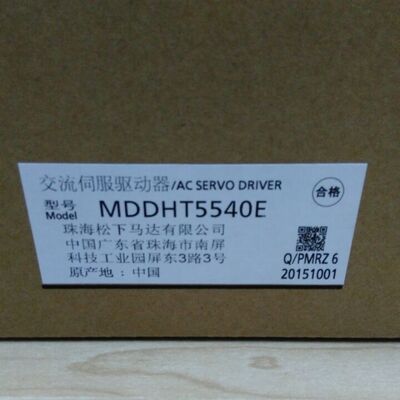

Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	100pcs/month

Contact Now Chat Now

MDDHT5540E Panasonic MINAS A5 Family Servo Driver

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries
Certificate:	CE ISO TUV
Highlight:	Panasonic MINAS A5 servo driver , AC servo motor driver , MDDHT5540E servo driver

MDDHT5540E Panasonic MINAS A5 Family Servo Driver

Part Number	MDDHT5540E
Product	Servo Driver
Product Name	MINAS A5 Family Servo Driver

Key Features

Power range: 10 W to 7.5 kW
Input power supply options: DC 24 V/48 V or AC 100 V/200 V/400 V
High-resolution encoder: 20-bit incremental or 17-bit Absolute/Incremental
High frequency response: 2.3 kHz
Position control type without safety function

Technical Specifications

Series	A5E series
Type	Position control type
Frame	D-Frame
Frequency Response	2.3 kHz
Control Method	Position control
Safety Function	Without
Power Device Max. Current Rating	50A
Current Detector Current Rating	40A
Supply Voltage	Single/3-phase 200 V
I/F Classification	Pulse train only
Dimensions (W×H×D)	86 × 150 × 170 mm
Mass	1.8 kg

Basic Specifications

Input Power: Main Circuit	Single/3-phase 200 V (+10% -15%) to 240 V (+10% -15%) 50/60 Hz
Input Power: Control Circuit	Single phase 200 V (+10% -15%) to 240 V (+10% -15%) 50/60 Hz
Encoder Feedback	20-bit (1,048,576 resolution) incremental encoder, 5-wire serial
Parallel I/O: Control Input	10 general purpose inputs (function selectable by parameters)
Parallel I/O: Control Output	6 general purpose outputs (function selectable by parameters)
Parallel I/O: Analog Output	2 analog monitor outputs
Parallel I/O: Pulse Input	2 inputs (photo-coupler input, line receiver input)
Parallel I/O: Pulse Output	4 outputs (3 line driver, 1 open collector)
Communication Function	USB interface for parameter setting and status monitoring
Regeneration	Built-in regenerative resistor (external resistor also enabled)
Control Mode	Switchable between: (1) Position control, (2) Internal velocity command, (3) Position/Internal velocity command

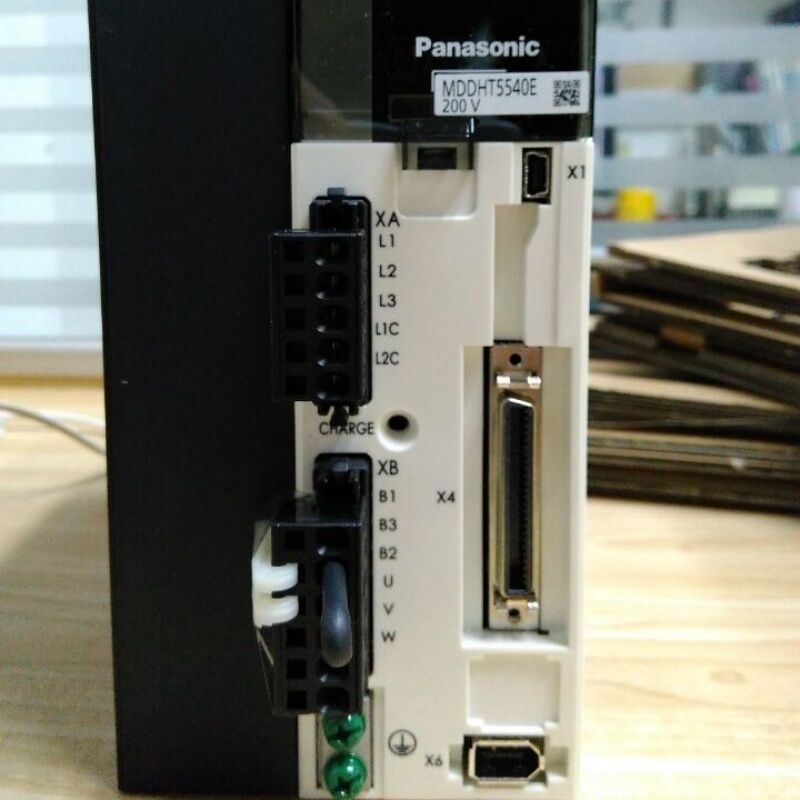

Dimensions & Connector Information

The external dimensions shown are for A5II and A5 series, but dimensions are common between A5II, A5 series and A5IIE, A5E series. Please refer to the catalogue for detailed dimensions. The air flow direction of the fan is shown on the external dimension or pin diagram.

For connector specifications, please refer to the catalogue for detailed dimensions. The air flow direction of the fan is shown on the external dimension or pin diagram.

For detailed environmental specifications and complete technical information, please refer to the instruction manual.
