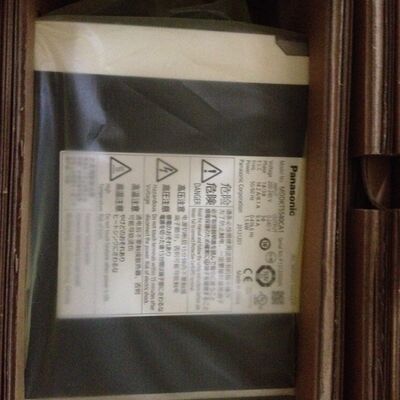

Panasonic MDDKT5540CA1 MINAS A5Ⅱ Series 1.5kW AC Servo Driver with 50A Max Current and 2.3 kHz Frequency Response

The Panasonic MDDKT5540CA1 is a high-performance AC servo driver from the MINAS A5Ⅱ series, designed for precision motion control in demanding industrial automation applications. With a rated output of 1.5 kW and support for Position, Speed, and Torque control modes, this driver delivers exceptional performance for applications including CNC machinery, robotics, packaging equipment, and automated assembly lines.

As part of Panasonic's MINAS A5Ⅱ platform, the MDDKT5540CA1 features a 2.3 kHz frequency response for rapid positioning, supports 20-bit incremental and 17-bit absolute encoders, and offers RS-232, RS-485, and USB communication interfaces for flexible system integration. The D-Frame compact design (85mm width) makes it suitable for space-constrained control cabinets.

• 1.5 kW Power Output: 1.5kW (1500W) rated output with 200-240V AC 3-phase power supply
• 50A Maximum Current: Power device max current rating of 50A, supporting demanding load requirements
• 2.3 kHz Frequency Response: Industry-leading velocity response frequency for rapid positioning and high throughput
• Multiple Control Modes: Switchable among Position control, Speed control, and Torque control
• High-Resolution Encoder Support: Compatible with 20-bit incremental (1,048,576 resolution) and 17-bit absolute (131,072 resolution) encoders
• Multiple Communication Interfaces: USB (PC configuration), RS-232 (1:1), and RS-485 (1:n up to 31 axes, Modbus-RTU)
• Flexible I/O Configuration: 10 programmable inputs and 6 programmable outputs for customized control integration
• Built-in Regeneration: Built-in regenerative resistor with external resistor option available
• D-Frame Compact Design: 85mm width chassis mount for efficient panel integration
• Two-Degree-of-Freedom Control: Advanced control system that improves productivity and machining accuracy
• Vibration Suppression: Reduces vibration at stopping and ensures smooth operation
• Protective Functions: Overvoltage, undervoltage, overspeed, overload, overheat, overcurrent, encoder error detection
• RoHS Compliant: Meets EU RoHS Directive requirements

The MDDKT5540CA1 (D-Frame, 1.5kW) is compatible with MINAS A5 series 1.5kW servo motors:

For use with MDME152GCHM motor, recommended cable part numbers:

External Regenerative Resistor: Optional for high-regeneration applications (refer to Panasonic catalog for specific part number).

The Panasonic MDDKT5540CA1 servo driver is ideal for:

• CNC Machinery - Milling, routing, and cutting equipment requiring precise position control
• Industrial Robotics - Articulated arms, gantry systems, and multi-axis robots
• Packaging Machinery - Wrapping, filling, sealing, and labeling equipment
• Automated Assembly Lines - Indexing operations and high-speed positioning
• Printing & Converting - Web handling and tension control applications
• Metal Processing - Precision cutting and forming equipment
• Food Processing - Simple food processing automation
• Semiconductor Manufacturing - Wafer handling and inspection equipment
