Panasonic MBDLN25NE 400W 12A 200V AC Servo Drive MINAS A6NE RTEX Series for Industrial Automation

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries
Certificate:	CE ISO TUV
Highlight:	Panasonic MINAS A5 servo driver , AC servo motor driver , MINAS A5 servo motor

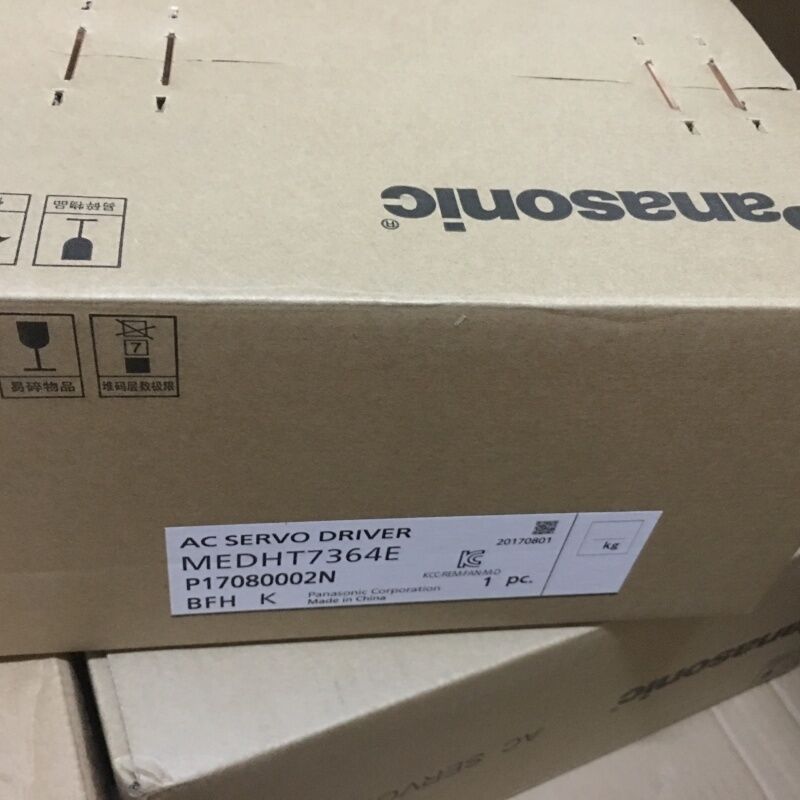

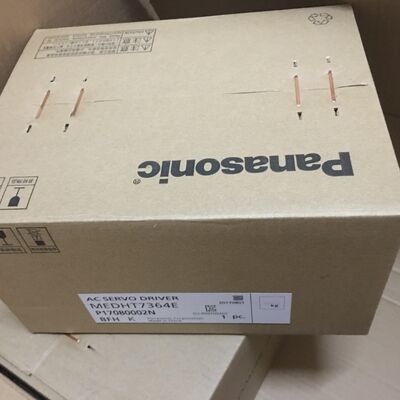

Panasonic MEDHT7364E AC Servo Driver (MINAS A5E Series)

The Panasonic MEDHT7364E is a high-power AC servo driver from the MINAS A5E series, engineered for demanding industrial automation applications requiring robust motion control. With a rated output of 2.5kW and a power device max current rating of 75A, this E-Frame driver delivers exceptional performance for heavy-duty servo systems.

Technical Specifications

Manufacturer	Panasonic Industrial Automation Sales
Series	MINAS A5E
Frame Size	E-Frame
Part Status	Discontinued (Obsolete)
Type	AC Servo Driver (Module)
Wattage - Load	2.5 kW (2500W)
Current - Output	75A (Power device max. current rating) / 64A (Current detector rating)
Voltage - Load	240V
Voltage - Supply (Main Circuit)	3-phase 200 ~ 240V (+10%/-15%) 50/60 Hz
Voltage - Supply (Control Circuit)	Single-phase 200 ~ 240V (+10%/-15%) 50/60 Hz
Frequency Response	2.3 kHz
Encoder Feedback	20-bit (1,048,576 resolution) incremental encoder, 5-wire serial
Control Method	Position control
Operating Temperature	0°C ~ 55°C
Dimensions (W × H × D)	86mm × 168mm × 193mm
Weight	2.7 kg (approx. 5.9 lbs)

Key Features

20-bit High-Resolution Encoder: Features a 20-bit (1,048,576 resolution) incremental encoder for ultra-fine positioning accuracy and superior motion control precision
High-Frequency Response: Delivers a 2.3 kHz frequency response for rapid and dynamic motion control, significantly improving system responsiveness
Flexible Control Modes: Supports switching among three control modes - Position Control, Internal Velocity Command, and Position/Internal Velocity Command
USB Communication Interface: Equipped with USB port for easy connection to computers for parameter setting, real-time status monitoring, and firmware updates
Built-in Regeneration: Includes built-in regenerative resistor with the option to connect an external resistor for higher regenerative capacity
Disturbance Observer Function: Uses estimated disturbance torque value to diminish impact of disturbance torque, reduce vibration, and offset speed decline
3-Step Gain Switching: Provides 3 different gain tunings for normal running, stopping for faster positioning, and at stopping

Model Variants

Model	Series	Description
MEDHT7364E	A5E	Position control type, without safety function, pulse train only interface
MEDHT7364B01	A5B	EtherCAT communication type
MEDHT7364NA1	A5N	RTEX communication type

Compatible Servo Motors

The MEDHT7364E is designed for use with Panasonic MINAS A5 series servo motors in the 2.5kW power range. Compatible motor series include MINAS A5 Series Motors (2.5kW rated, 200V class) with both Medium Inertia and Low Inertia classes.

⚠️ Note: Please verify motor compatibility with your existing system before purchasing. The driver supports 20-bit incremental encoder feedback from MINAS A5 series motors.

Applications

Industrial Automation Systems
CNC Machinery & Machine Tools
Robotics & Pick-and-Place Equipment
Packaging & Labeling Machinery
Material Handling & Conveyor Systems
Assembly Lines
Semiconductor Manufacturing Equipment
Printing Machinery
