Panasonic MHMD042G1U 400W Power Output AC Servo Motor with 20-bit High-Resolution Encoder and IP65 Protection Rating

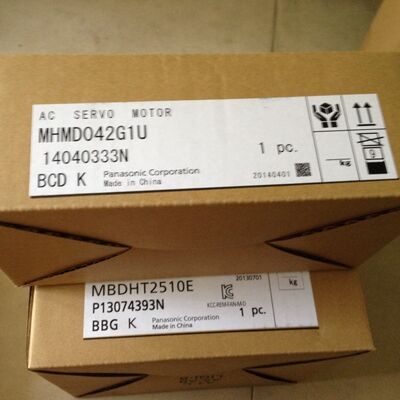

Large Image : Panasonic MHMD042G1U 400W Power Output AC Servo Motor with 20-bit High-Resolution Encoder and IP65 Protection Rating

Product Details:

Place of Origin:	Japan
Brand Name:	Panasonic
Certification:	CE UL ROSH
Model Number:	MHMD042G1U

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	100pcs/month

Contact Now Chat Now

Panasonic MHMD042G1U 400W Power Output AC Servo Motor with 20-bit High-Resolution Encoder and IP65 Protection Rating

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries
Certificate:	CE ISO TUV
Highlight:	Panasonic 400W AC servo motor , Panasonic servo motor with driver , 400W AC servo motor driver

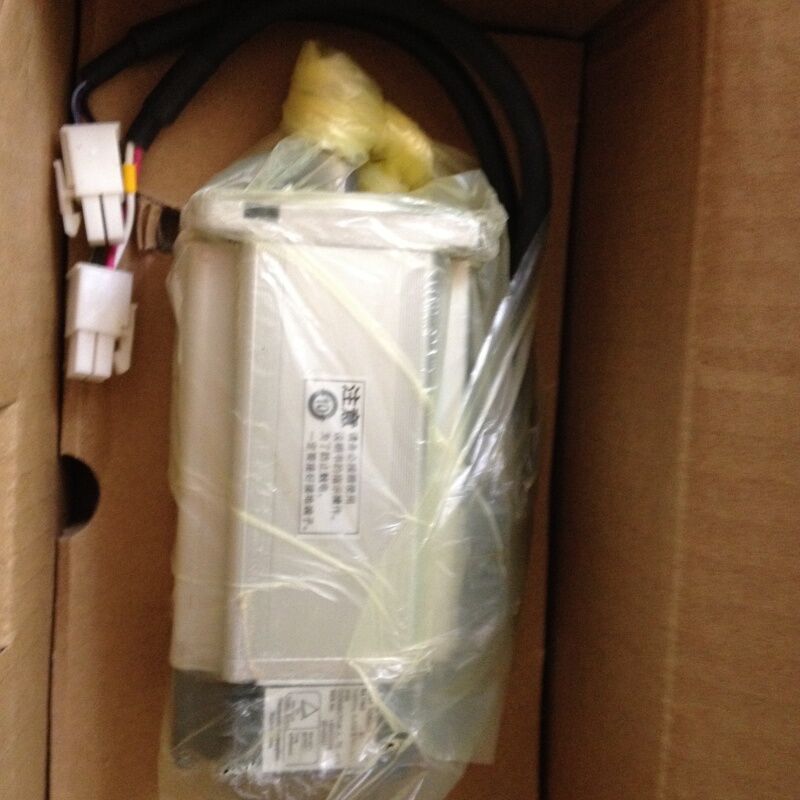

Panasonic MHMD042G1U Servo Motor

The Panasonic MHMD042G1U is a medium-inertia AC servo motor from the MINAS A5 family, designed for general-purpose industrial automation applications requiring balanced dynamic response and reliable positioning. With a rated output of 400W and 200V AC power supply, this motor delivers consistent performance for applications including pick-and-place equipment, small robotics, packaging machinery, and automated assembly lines.

Key Features

400W Power Output: 400W rated output with 200V AC power supply, power supply capacity of 0.9 kVA
Medium Inertia Design: Rotor inertia of 0.67 × 10⁻⁴ kg*m² for balanced dynamic response and load matching; recommended load inertia ratio of 30:1 or less
20-bit High-Resolution Encoder: 1,048,576 pulses/revolution resolution for precise positioning and smooth low-speed operation
IP65 Protection Rating: Excellent protection against dust and water jets (excluding output shaft rotating portion and leadwire ends)
Robust Torque Output: Rated torque of 1.3 N*m, momentary maximum peak torque of 3.8 N*m
Wide Speed Range: Rated speed of 3000 r/min, maximum speed of 5000 r/min
Lead Wire Configuration: Simple lead wire type for easy installation without additional connectors
Durable Construction: Key-way shaft with center tap and oil seal for reliable torque transmission
No Holding Brake: Standard version without brake (brake-equipped model MHMD042G1V available)
Unlimited Regenerative Brake Frequency: No limit with or without optional external regenerative resistor DV0P4283
RoHS Compliant: Confirmed to not contain the 6 substances specified in EU RoHS Directive

Technical Specifications

Specification	Value
Part Number	MHMD042G1U
Family Name	MINAS A5 Family
Series	MHMD Series
Type	Medium inertia, Lead wire type, IP65
Product Status	Discontinued
Rated Output	400 W
Voltage Specifications	200 V AC
Power Supply Capacity	0.9 kVA
Rated Current	2.6 A (rms)
Instantaneous Max Current	11.0 A (o-p)
Rated Torque	1.3 N*m
Momentary Max Peak Torque	3.8 N*m
Rated Rotational Speed	3000 r/min
Maximum Rotational Speed	5000 r/min
Rotor Moment of Inertia	0.67 × 10⁻⁴ kg*m²
Recommended Load Inertia Ratio	30 times or less
Rotary Encoder Type	20-bit Incremental system
Encoder Resolution	1,048,576 pulses/revolution
Protection Class	IP65 (excluding shaft and leadwire ends)
Shaft Type	Key-way, center tap
Shaft Diameter	0.551" (14.00 mm)
Holding Brake	Without
Motor Lead-out Configuration	Lead wire
Motor/Encoder Connector	Lead wire
Flange Square Dimension	□60 mm
Mass	1.4 kg (3.1 lbs)
Oil Seal	With
External Regenerative Resistor Option	DV0P4283
Regenerative Brake Frequency	No limit (with or without external resistor)
Operating Temperature	0°C to 40°C
Approvals	CE, CSA, cULus, TUV, UL

Applications

Pick-and-Place Equipment - High-speed component placement with precise positioning
Small Industrial Robotics - Articulated arms and SCARA robots for light-duty applications
Packaging Machinery - Wrapping, filling, sealing, and labeling equipment
Automated Assembly Lines - Indexing operations and general positioning
CNC Machinery - Small milling, routing, and engraving equipment
Semiconductor Manufacturing - Wafer handling and inspection equipment
PCB Assembly - Placement machines and solder paste printers
General Automation - Medium-inertia applications requiring balanced performance

Installation & Setup

Mechanical Installation: Any mounting orientation acceptable. Use flat, rigid surface with sufficient heat dissipation. □60 mm square flange for standard mounting. Key-way shaft for positive torque transmission; use flexible coupling.

Environmental Requirements: Operating temperature 0°C to 40°C. IP65 protection class (except rotating portion of output shaft and leadwire ends).

Electrical Connection: Lead wire type - follow color codes per instruction manual. Proper grounding required for safety and noise immunity.

⚠️ Important: Product Discontinued
The Panasonic MHMD042G1U has been officially discontinued. No further production is scheduled.

Recommended Replacement Options

Recommended Upgrade: MINAS A6 Series (MSMF042L1G6M or MHMF042L1G6M) - 23-bit encoder, 6500 rpm max speed, IP67 protection
Alternative: MINAS A6 Series (MHMF042L1U2M) - High inertia alternative
Note: When upgrading to A6 series, replace both motor and driver as a matched set.
