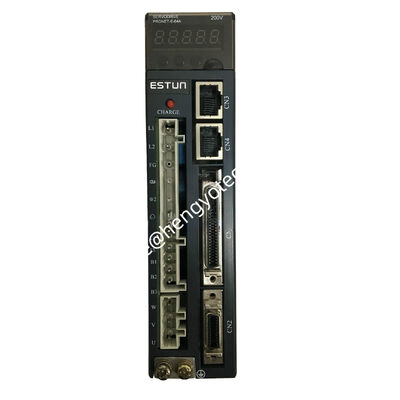

PRONET-E-04A ESTUN 400W AC Servo Motor Driver

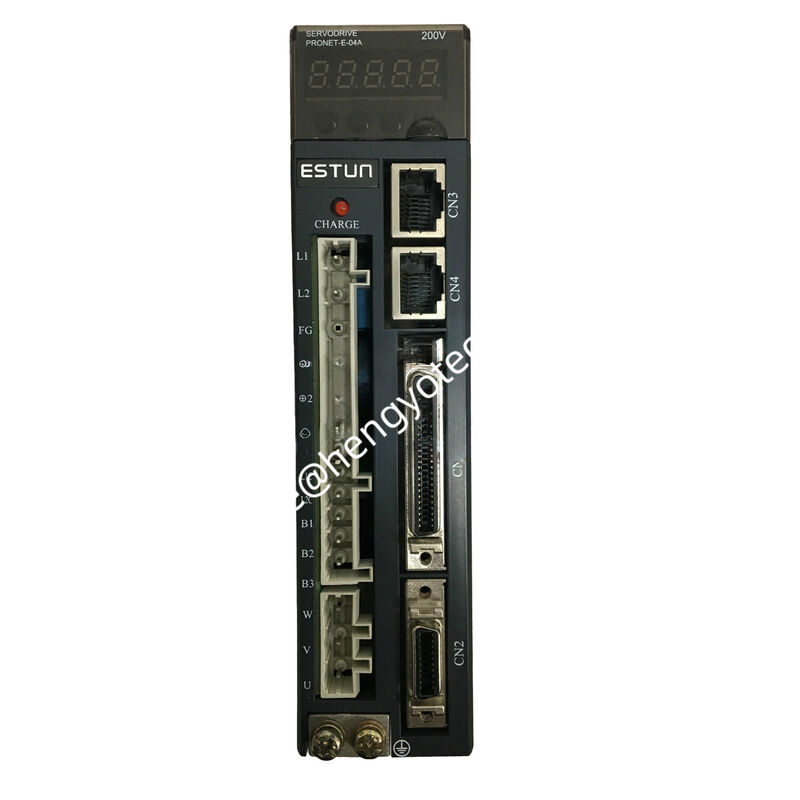

Large Image : PRONET-E-04A ESTUN 400W AC Servo Motor Driver

Product Details:

Place of Origin:	CHINA
Brand Name:	ESTUN
Model Number:	PRONET-E-04A

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable

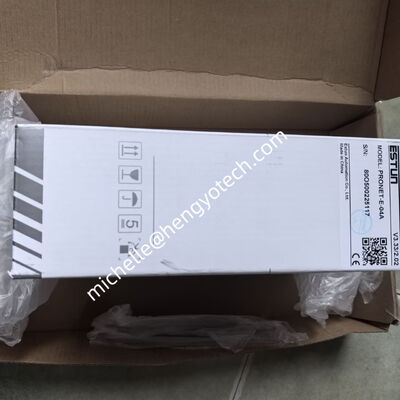

Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	50pcs/month

Contact Now Chat Now

PRONET-E-04A ESTUN 400W AC Servo Motor Driver

Description

Condition:

Original Brand New

Warranty:

One Year

Shipping Way:

DHL FedEx

Application:

CNC Machine, Packaging Machine Etc.

Highlight:

ESTUN 400W servo motor driver

AC servo driver with warranty

PRONET-E-04A motor driver

Model: PRONET - E - 04A
Brand Name: ESTUN
Product Series: PRONET - E Series AC Servo Drive (200V class, matching 0.4kW EMJ - 04A servo motor)
Application: Works with EMJ - 04A servo motor for medium - inertia motion control scenarios requiring precise position, speed, and torque control

2. Model Decoding

Model Segment	Explanation
PRONET	PRONET Series Servo Drive
E	200V Voltage Class
04	Rated Power Matching: 0.4kW (matches EMJ - 04A motor)
A	Standard Configuration (compatible with 200VAC servo motor)

3. Core Features

Supports 200VAC power supply (single - phase/three - phase optional), suitable for 0.4kW medium - inertia servo control
Matches EMJ series medium - inertia servo motors, supporting peak torque up to 300% of rated torque
Compatible with linear incremental encoder (2500P/R) and 17 - bit absolute encoder (optional)
Integrated standard I/O interface (CN1) for easy wiring and system integration
Supports position, speed, and torque control modes with a frequency response of up to 1.6kHz
Optional brake control to match motors with DC24V brakes
Standard general connector; some configurations have factory - equipped waterproof connectors

4. Technical Specifications (Typical)

Parameter	Value
Power Supply	200VAC, single - phase/three - phase
Rated Output Current	Matches 0.4kW servo motor (typical 3.2A)
Control Modes	Position/Speed/Torque
Feedback Compatibility	Linear incremental encoder (2500P/R), 17 - bit absolute encoder (optional)
Communication Interface	Standard I/O; optional Modbus, CANopen, PROFIBUS, etc.
Protection Functions	Overcurrent, overvoltage, undervoltage, overheat, encoder error, short - circuit protection
Ambient Temperature	0°C - 40°C (operation); - 20°C - 60°C (storage)
Protection Class	IP20 (drive unit)

5. Typical Applications

Placement machines
Instant circuit board drilling machines
Industrial robots
Handling machinery
Textile machinery
General automation equipment requiring precise motion control

6. Installation & Wiring Notes

Install the drive in a clean, dry, well - ventilated cabinet; avoid direct sunlight, dust, and corrosive gases.
Follow the wiring diagram to correctly connect power, motor, encoder (CN2), and I/O signals (CN1).
Ensure proper grounding to reduce electromagnetic interference.
For motors with brakes, connect the DC24V brake power supply as per the manual.
Use shielded cables for encoder and signal lines to enhance anti - interference performance.
Comply with electrical safety standards during installation and maintenance.
