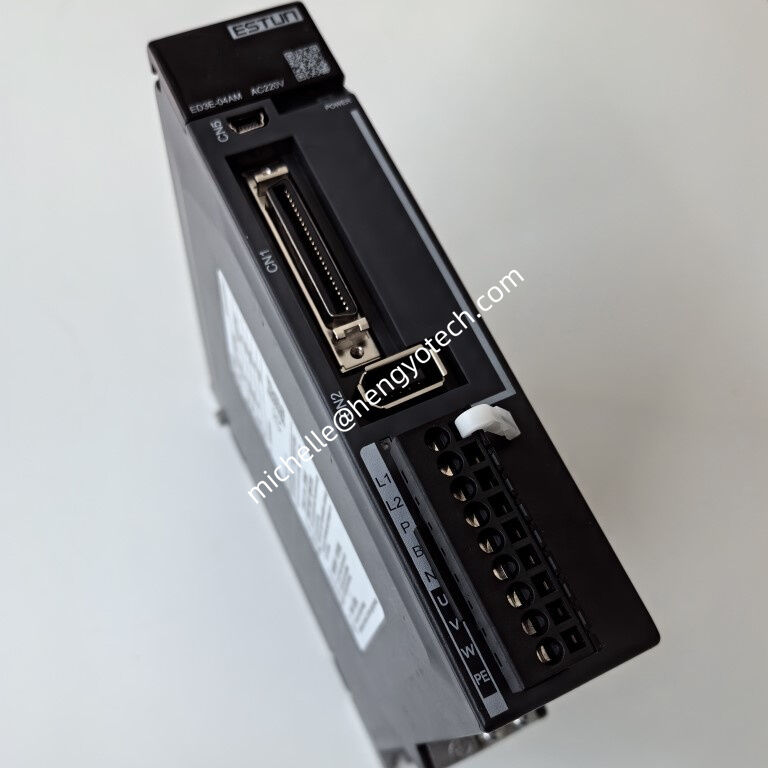

Estun 400W AC Servo Amplifier ED3E-04AMA

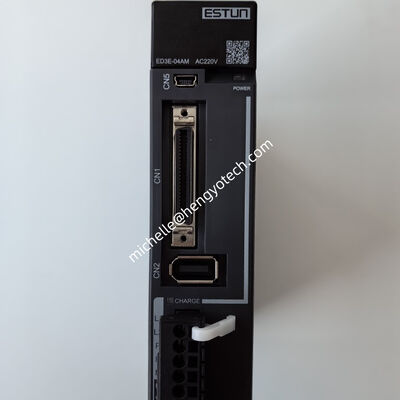

Large Image : Estun 400W AC Servo Amplifier ED3E-04AMA

Product Details:

Place of Origin:	CHINA
Brand Name:	ESTUN
Model Number:	ED3E-04AMA

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	50pcs/month

Contact Now Chat Now

Estun 400W AC Servo Amplifier ED3E-04AMA

Description

Condition:

Original Brand New

Warranty:

One Year

Shipping Way:

DHL FedEx

Application:

CNC Machine, Packaging Machine, Etc.

Highlight:

Estun 400W servo amplifier

AC servo motor driver ED3E-04AMA

Estun servo amplifier with warranty

1. Basic Information

Model: ED3E-04AMA
Product Series: ED3E - Series AC Servo Drive (200V class, 0.4kW rated power)
Application: Paired with EMJ-04APA22 servo motor for high - precision motion control in scenarios like small - to - medium - sized automated assembly lines, electronic component handling systems, precision testing equipment, and light - duty packaging machinery requiring 0.4kW power output and stable positioning.

2. Model Decoding

Model Segment	Explanation
ED3E	ED3E Series Servo Drive (200V voltage class)
04	Rated Power Matching: 0.4kW (400W)
A	Standard Configuration (200VAC, 3 - phase power supply)
M	Medium - inertia motor matching
A	Standard encoder interface (supports 2500P/R incremental encoder)

3. Core Features

200VAC three - phase power supply, designed for 0.4kW medium - inertia servo control applications.
Matches EMJ - 04APA22 medium - inertia servo motor, supporting peak torque up to 300% of rated torque for short - term overload operations.
Compatible with 2500P/R linear incremental encoder (standard) and 17 - bit absolute encoder (optional) for precise position feedback.
Supports position, speed, and torque control modes, with a frequency response up to 1.5kHz for rapid dynamic response.
Integrated standard I/O interface (CN1) and encoder interface (CN2), facilitating system integration and wiring.
Optional DC24V brake control to match servo motors with brake, suitable for vertical load applications.

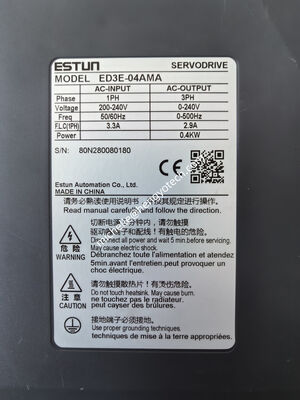

4. Technical Specifications (Typical)

Parameter	Value
Power Supply	200VAC, 3 - phase, 50/60Hz
Rated Output Current	2.6A (matches 0.4kW servo motor)
Control Modes	Position/Speed/Torque
Feedback Device	2500P/R incremental encoder (standard); 17 - bit absolute encoder (optional)
Communication Interface	Standard I/O; optional Modbus, CANopen
Protection Functions	Overcurrent, overvoltage, undervoltage, overheat, encoder error, short - circuit protection
Ambient Temperature	0°C - 40°C (operation); - 20°C - 60°C (storage)
Protection Class	IP20 (drive unit)
Certification	CE; UL certified (for models with "- UL" marking)

5. Installation & Wiring Notes

Install the drive in a clean, dry, well - ventilated electrical cabinet, avoiding direct sunlight, dust, and corrosive substances.
Strictly follow the wiring diagram to connect 3 - phase power, motor terminals, encoder (CN2), and I/O signals (CN1).
Use shielded twisted - pair cables for the encoder to minimize electromagnetic interference; ground the cable shield at the drive end.
For motors with brakes, connect the DC24V brake power supply as specified in the wiring manual.
Wait at least 5 minutes after power - off before touching terminals to prevent electric shock.
