Panasonic MINAS A6 Series 100W AC Servo Kit with 23-bit Encoder 3.2 kHz Response and IP65 Protection

Large Image : Panasonic MINAS A6 Series 100W AC Servo Kit with 23-bit Encoder 3.2 kHz Response and IP65 Protection

Product Details:

Place of Origin:	Japan
Brand Name:	Pansonic
Certification:	CE UL ROSH
Model Number:	MADLT05SF+MSMF012L1U2M

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	Ship out immediately upon payment received
Payment Terms:	T/T,Western Union
Supply Ability:	500sets/month

Contact Now Chat Now

Panasonic MINAS A6 Series 100W AC Servo Kit with 23-bit Encoder 3.2 kHz Response and IP65 Protection

Description

Condition:

Pansonic Original Brand New

Warranty:

One Year

Application:

CNC Machine, Packaging Packaging

Shipping Way:

DHL FedEx

Highlight:

Panasonic servo motor 100w

AC servo driver with warranty

Panasonic A6 servo motor driver

Panasonic MADLT05SF + MSMF012L1U2M Servo Kit

100W 200V AC MINAS A6 Series A6SF Multifunction Driver + Low Inertia Motor with 23-bit Encoder

Product Overview

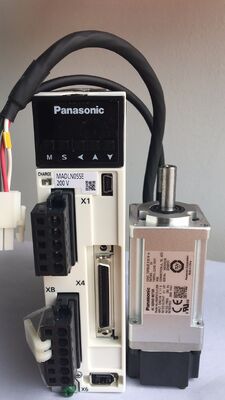

The Panasonic MADLT05SF servo driver and MSMF012L1U2M servo motor form a high-performance motion control system from the MINAS A6 series, designed for precision motion control in compact industrial automation applications. This 100W combination delivers exceptional positioning accuracy and flexible control capabilities for applications including small CNC machinery, pick-and-place equipment, laboratory automation, and miniature robotics.

The MSMF012L1U2M is a low-inertia AC servo motor featuring a 23-bit absolute/incremental encoder (8,388,608 pulses/revolution) for ultra-high positioning accuracy. With a rated speed of 3000 r/min and maximum speed of 6500 r/min, this motor excels in high-speed start/stop applications requiring rapid acceleration. The motor is rated IP65 for superior environmental protection.

The MADLT05SF is an A6SF series multifunction driver featuring 3.2 kHz frequency response, support for position, speed, torque, and full-closed control modes, and multiple communication interfaces (RS-232, RS-485, USB, Modbus).

Product Status: Both components are Active (In Production) - Available for new designs.

MSMF012L1U2M Motor Key Features

100W Precision Power Output: 0.1 kW rated output with 200V AC power supply
Low Inertia Design: Rotor inertia of 0.048 × 10⁻⁴ kg*m² for superior acceleration/deceleration performance
23-bit High-Resolution Encoder: Absolute/incremental dual-mode encoder with 8,388,608 pulses/revolution resolution
High Speed Capability: Rated speed of 3000 r/min, maximum speed of 6500 r/min
Robust Torque Output: Rated torque of 0.32 N*m, momentary maximum peak torque of 0.95 N*m
IP65 Protection Rating: Excellent environmental protection against dust and water jets
Compact 38mm Flange: Ultra-compact design for space-constrained equipment
Lightweight Design: Only 0.47 kg for easy integration
Active Product: Currently in production - available for new designs

MADLT05SF Driver Key Features

A6SF Multifunction Type: Supports position, speed, torque, and full-closed control modes
3.2 kHz High-Frequency Response: Industry-leading response for rapid positioning
23-bit High-Resolution Encoder Support: 8,388,608 pulses/revolution resolution
Seven Control Modes: Switchable among multiple control combinations
Multiple Communication Interfaces: USB, RS-232, RS-485, and Modbus-RTU
RS-485 Multi-Axis Capability: 1:n communication up to 31 axes
Flexible I/O Configuration: 10 programmable inputs and 6 programmable outputs
A-Frame Compact Design: 40mm width for efficient control panel integration
Lightweight Construction: Only 0.8 kg for easy installation
RoHS Compliant: Meets EU environmental requirements

MSMF012L1U2M Motor Specifications

Specification	Value
Part Number	MSMF012L1U2M
Rated Output	100 W (0.1 kW)
Voltage Specifications	200 V AC
Rated Torque	0.32 N*m
Rated Rotational Speed	3000 r/min
Maximum Rotational Speed	6500 r/min
Encoder Resolution	8,388,608 pulses/revolution
Protection Class	IP65
Mass	0.47 kg
Product Status	Active (In Production)

MADLT05SF Driver Specifications

Specification	Value
Part Number	MADLT05SF
Frequency Response	3.2 kHz
Control Method	Position, Speed, Torque, Full-closed control
Supply Voltage - Main Circuit	Single/3-phase 200 to 240V AC
Current Output	6A
Load Wattage	100 W
Encoder Feedback	23-bit absolute encoder
Communication Interfaces	USB, RS-232, RS-485, Modbus-RTU
Dimensions (W × H × D)	40 × 150 × 130 mm
Mass	0.8 kg
Product Status	Active (In Production)

Control Modes (MADLT05SF)

Control Mode	Description	Typical Applications
Position Control	Pulse train input for precise position command	CNC machinery, pick-and-place, positioning tables
Speed Control	Analog voltage speed command	Conveyors, spindles, winding/unwinding
Torque Control	Analog voltage torque command	Tension control, pressing, clamping
Position/Speed Control	Switchable between position and speed modes	Multi-process automation equipment
Position/Torque Control	Switchable between position and torque modes	Complex motion sequences
