Panasonic 3KW AC Servo Motor MDME302GCG MDME302GCGM

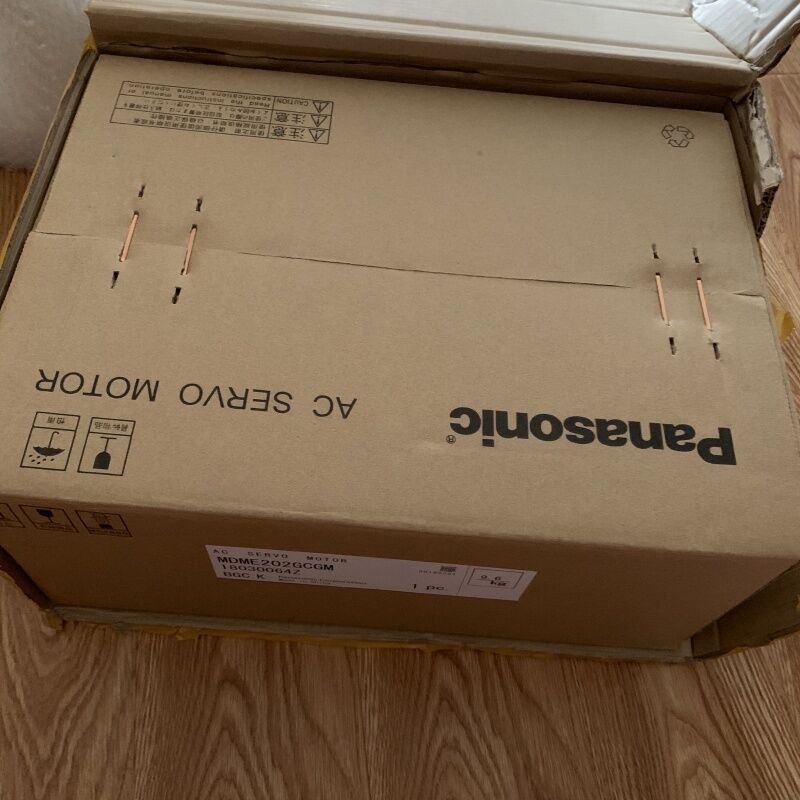

Large Image : Panasonic 3KW AC Servo Motor MDME302GCG MDME302GCGM

Product Details:

Place of Origin:	Japan
Brand Name:	Panasonic
Model Number:	MDME302GCGM

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	ship out immediately upon payment received
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

Panasonic 3KW AC Servo Motor MDME302GCG MDME302GCGM

Description

Condition:

Panasonic Original Brand New

Warranty:

One Year

Application:

CNC Machine, Packaging Machine

Shipping Way:

DHL FedEx

Highlight:

Panasonic 3KW AC servo motor

MDME302GCG servo motor with warranty

industrial AC servo motor 3KW

Part Number	MDME302GCGM
Product	Servo Motor
Details	Middle inertia, Connector type, IP65
Product Name	MINAS A5 Family Servo Motor (Discontinued)
Features	10 W to 7.5 kW, Input power supply for Driver: Voltage DC 24 V/48 V・AC 100 V/200 V/400 V, 20 bit incremental・17 bit Absolute/Incremental encoder, Frequency response 2.3 kHz

Item	Specifications
Part Number	MDME302GCGM
Product details	Middle inertia, Connector type, IP65
Family Name	MINAS A5
Series	MDME Series
Type	Middle inertia
Special Order Product	Please avoid the motor, or equipment containing the motor to be distributed to Japan, or other regions through Japan.
Protection class	IP65
About Enclosure	Except rotating portion of output shaft and connecting pin part of the motor connector and the encoder connector.
Environmental Conditions	For more details, please refer to the instruction manual.
Flange sq. dimension	130 mm sq.
Flange size (mm)	130
Motor lead-out configuration	Connector
Motor encoder connector	Connector
Power supply capacity (kVA)	4.5
Voltage specifications (V)	200
Rated output (W)	3000
Rated current [Reference value] (A rms)	17.4
Holding brake	without
Mass (kg)	11.0
Oil seal	with
Shaft	Key-way
Rated torque (N ⋅ m)	14.3
Momentary Max. peak torque (N ⋅ m)	43.0
Max. current [Reference value] (A 0-p)	74
Regenerative brake frequency (times/min)	Without option :No limit With option :No limit Option (External regenerative resistor) Part No. : DV0P4285 x 2 in parallel
About regenerative brake frequency	Please refer to the details of [Motor Specification Description] , Note: 1, and 2.
Rated rotational speed (r/min)	2000
Max. rotational speed (r/min)	3000
Inertia of rotor ( x10^-4 kg ⋅ m²)	12.9
Recommended inertia ratio	10 times or less
About recommended moment of inertia ratio of the load and the rotor	Please refer to the details of [Motor Specification Description] ,Note: 3.
Rotary encoder: specifications	20-bit Incremental system
Rotary encoder: Resolution	1048576

scroll

Permissible load

Item	Specifications
During assembly: Radial load P-direction (N)	980
During assembly: Thrust load A-direction (N)	588
During assembly: Thrust load B-direction (N)	686
During operation: Radial load P-direction (N)	784
During operation: Thrust load A, B-direction (N)	343
About permissible load	For details, refer to the [Motor Specification Description] "Permissible Load at Output Shaft".
