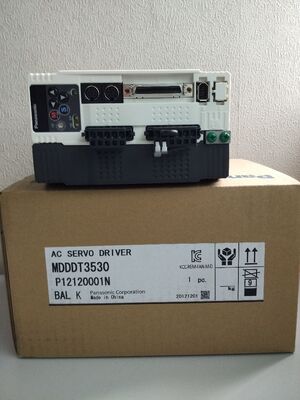

Panasonic MDDDT3530 MINAS A4 Servo Driver with 30A Output 1.5kW Load Capacity and 1.0 kHz Frequency Response

The Panasonic MDDDT3530 is a high-performance AC servo driver from the renowned MINAS A4 series, designed for precision motion control in demanding industrial automation applications. This versatile driver supports Position, Speed, Torque, and Full-Closed control modes, making it an ideal choice for CNC machinery, robotics, automated assembly lines, packaging equipment, and high-precision manufacturing systems.

Engineered with advanced digital signal processing technology and supporting 17-bit (131072 resolution) absolute/incremental encoders, the MDDDT3530 delivers a 1.0 kHz frequency response for rapid acceleration and superior vibration suppression. The driver features real-time auto-tuning capabilities that simplify setup and optimize performance across varying load conditions.

• Four Control Modes in One: Switchable between Position control, Speed control, Torque control, and Full-closed control - seven total mode combinations available
• High-Speed Response: 1.0 kHz frequency response for rapid positioning and high-throughput applications
• High-Resolution Feedback: 17-bit (131,072 resolution) absolute/incremental encoder support, plus 2500 P/r (10,000 resolution) incremental encoder option
• Full-Closed Control Capability: Supports external scale feedback via serial communication for high-precision positioning applications
• Flexible Communication: RS-232 (1:1) and RS-485 (1:n up to 15 axes) interfaces for multi-axis systems
• Built-in Regenerative Circuit: Integrated regenerative resistor with external resistor option
• Easy Setup & Diagnostics: Built-in operation panel for parameter adjustment, status monitoring, and fault diagnosis
• Robust Protection: Over-voltage, over-current, and thermal protection for reliable operation
• Auto-Tuning Function: Intelligent real-time auto-tuning automatically adjusts gain parameters for optimal performance
• Vibration Suppression: Adaptive filter automatically adjusts to mechanical resonance frequency; two manual notch filters and two vibration suppression filters available

The MDDDT3530 supports 7 switchable control modes to suit diverse applications:

• CNC Machinery - Milling, routing, cutting equipment
• Robotics - Articulated arms, gantry systems, SCARA robots
• Automated Assembly - Pick-and-place, indexing, dispensing
• Packaging Machinery - Wrapping, filling, sealing, labeling
• Semiconductor Equipment - Wafer handling, die bonding
• PCB Assembly - Placement machines, solder paste printers
• Industrial Automation - Multi-axis synchronized systems, electronic camming
• Marine Equipment - Anchor winches, hoists (field-tested applications)

The MDDDT3530 is compatible with MINAS A4 series AC servo motors, particularly:

• 17-bit absolute/incremental encoder (131,072 resolution) - 7-wire
• 2500 P/r incremental encoder (10,000 resolution after multiplication) - 5-wire

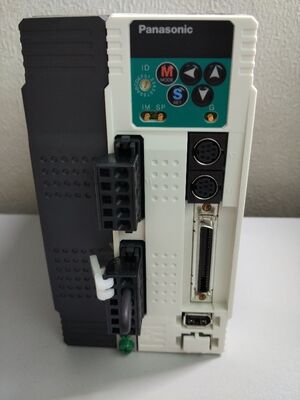

• Mounting: Chassis mount - 85mm width D-Frame design
• Configuration: Built-in operation panel for parameter adjustment, or RS-232/RS-485 connection to PC using PANATERM software
• Auto-Tuning: Real-time auto-tuning automatically adjusts gain parameters for optimal performance under varying load conditions
• Cooling: Natural convection cooling (fanless design)
• Default Settings: Factory default parameters can be restored for quick setup

• 1 x Panasonic MDDDT3530 Servo Driver (D-Frame)
• (Power connector and motor connector - please verify inclusion with supplier)
